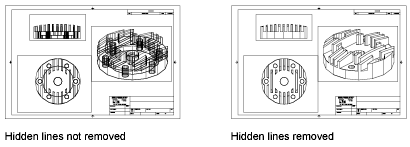

To Work With Removing Hidden Lines When Plotting

Remove Hidden Lines When Plotting from a Layout Tab

Select a layout viewport.
Double-click the viewport border to display the Properties palette.
On the Properties palette, click Shade Plot.
In the Shade Plot drop-down list, select Hidden.
Click OK to plot the drawing.

Remove Hidden Lines When Plotting from the Model Tab

Click Output tabPlot panelPlot. Find
In the Plot dialog box, under Shaded Viewport Options area, Shade Plot drop-down list, select Hidden.
Click OK to plot the drawing.
