To Purge Unused Linetype Definitions

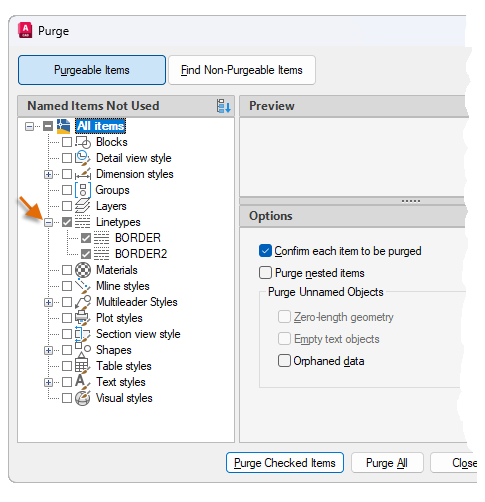

Use the Purge dialog box to delete unreferenced definitions including linetypes from the current drawing.

1. Click Application button Drawing UtilitiesPurge. Find
2. To purge unreferenced linetypes, use one of the following methods:
   • To purge all unreferenced linetypes, select Linetypes.
   • To purge specific linetypes, expand the Linetyles tree view. Then select the linetype definitions to be purged.

3. You are prompted to confirm each item in the list. If you do not want to confirm each purge, clear the Confirm Each Item To Be Purged option.
4. Click Purge.
