Have You Tried: The Properties Palette

The Properties Palette

Every AutoCAD object has its own set of properties. General properties such as color, layer, linetype, linetype scale, lineweight, and some others are common to most objects. Some objects have specific properties for themselves.

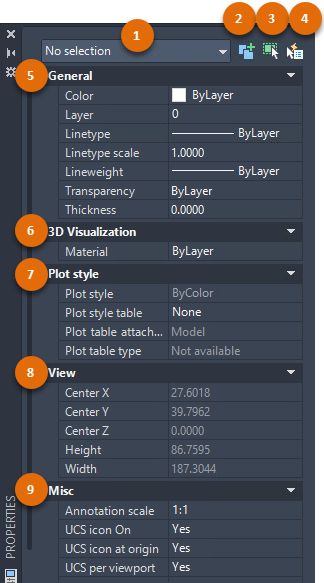

Let's take a look at the overall view of the Properties palette.

Number	Name	Description
1	Object Type Filter	Displays the type of objects that are selected. Use the object type filter drop-down list when you select multiple types of objects, and want to modify the properties of a single object type at a time.
2	Toggle Value of PICKADD System Variable	Turns the PICKADD system variable on (1) and off (0). When PICKADD is on (), each object selected, either individually or by windowing, is added to the current selection set. When PICKADD is off (), selected objects replace the current selection set. Note: When PICKADD is set to 0, you can hold the Shift key to add objects to the current selection set.
3	Select Objects	Selects desired objects using any selection method. The properties common to the selected objects are displayed in the Properties palette. You can then modify the properties of the selected objects in the Properties palette, or you can make other changes to the selected objects by entering an editing command.
4	Quick Select	Displays the Quick Select dialog box. Use Quick Select to create selection sets based on filtering criteria.
5	General	Displays the general properties of the selected object or the settings of the current drawing (when nothing is selected). This section also includes a set of Layer tools.
6	3D Visualization	Displays the 3D visualization properties for the current drawing or selection.
7	Plot Style	Displays the plot style settings including the plot style table options that can be assigned to the current drawing or to a selected object.
8	View	When no object is selected, displays the current view settings.
9	Misc	Displays other drawing settings and viewport properties such as the current annotation scale, UCS icon display settings, and the visual style.

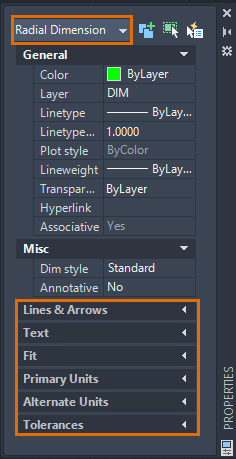

The properties and settings displayed in the palette change depending on the selected objects or drawing context; inserting a block or in a viewport on a layout. For example, selecting a dimension displays additional properties specific to the dimension object type.

Display the Properties Palette

The Properties palette can be resized, docked to either side of the drawing window, moved to another location, or placed onto a secondary monitor.

Edit the Properties of an Object

In addition to displaying the current settings of the drawing, the Properties palette is a powerful tool for editing object properties. In this exercise, we make some property changes to a simple mechanical part.

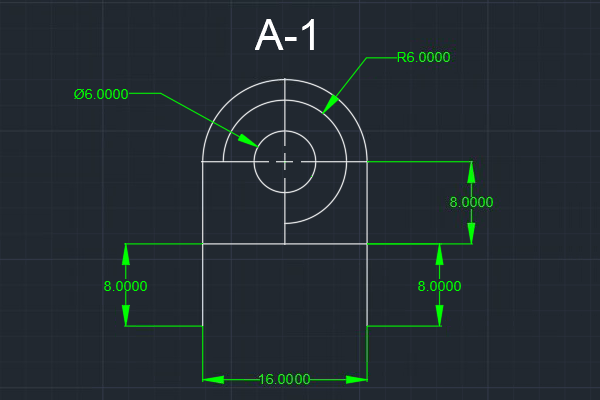

1. Draw something similar to what’s shown below.

   You may also open a drawing of your own.


2. If the Properties palette is not already open, click View tab Palettes panel Properties. Find
   Tip: Press Ctrl+1 to easily show or hide the Properties palette.

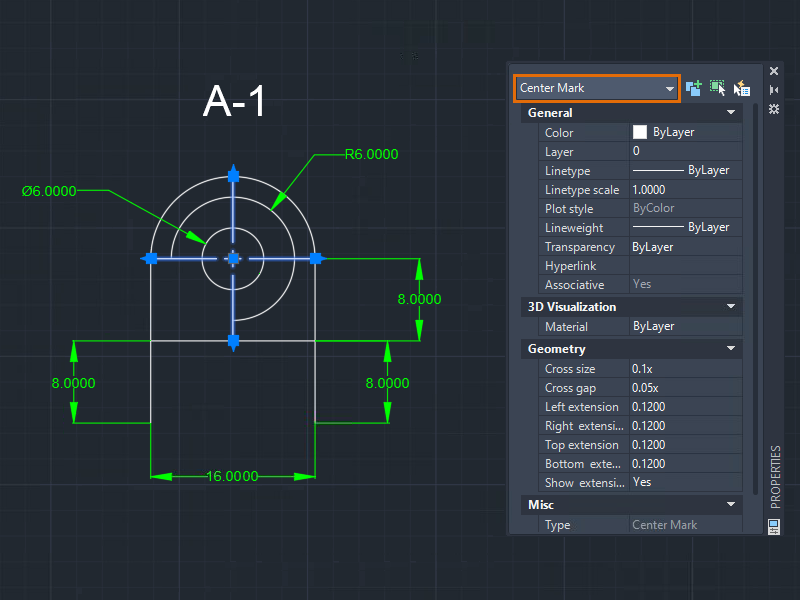

3. Select the center mark.

   The properties of the selected center mark display in the Properties palette.



   For more information about selecting objects, see Have You Tried: Window, Fence, Lasso, and More.

4. In the Properties palette, under General, select a color, for example, Cyan.

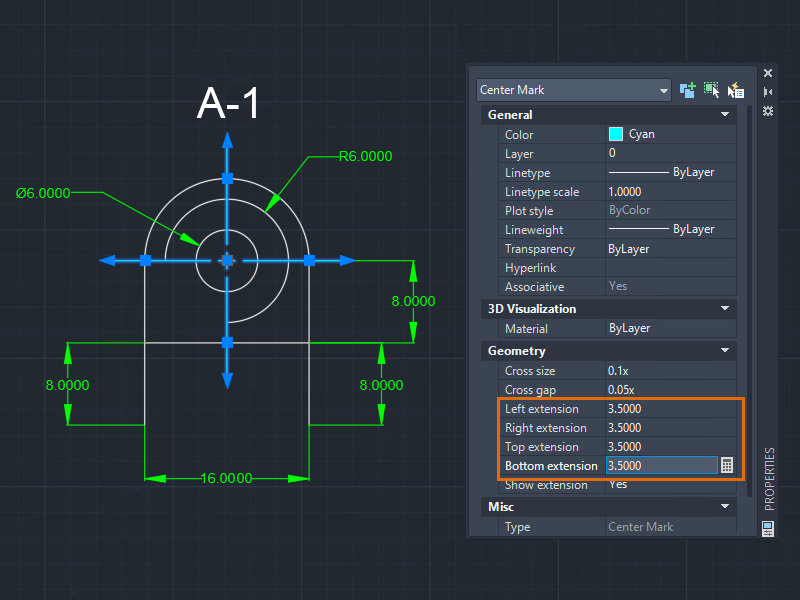

5. To extend individual centerline extensions, under Geometry, change the Left, Right, Top, and Bottom Extension values. For this example, I changed all extensions to 3.5000.

   Tip: You can also uniformly change the length of all four centerline extensions using the multi-functional center grip of the center mark. To learn more techniques about grip-editing, see Have You Tried: Just Grip It!.
6. Press Esc to clear the selection.

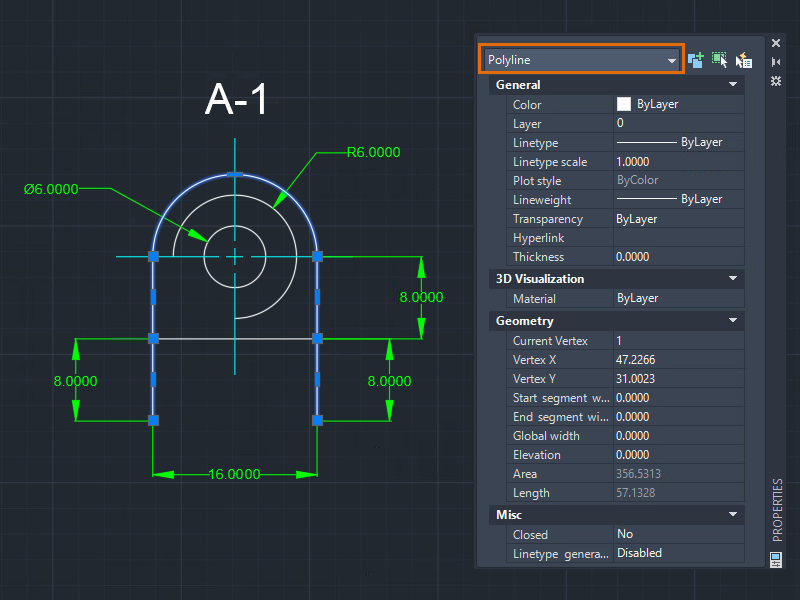

7. Let's try a different object. Select the polyline.

   Notice that the properties available for the polyline are different from those of the center mark.



Polylines consist of one or more line or arc segments. A vertex defines the start and endpoint of a segment. The order of the vertices follows how the polyline was created.

Let's say you want to stretch the individual segments of the polyline.

8. To adjust the first vertex, in the Properties palette, under Geometry, click the Current Vertex box.

   An X marker indicates the vertex of the polyline that you're editing. You can only edit one vertex at a time.


9. From the Current Vertex property, select 1.

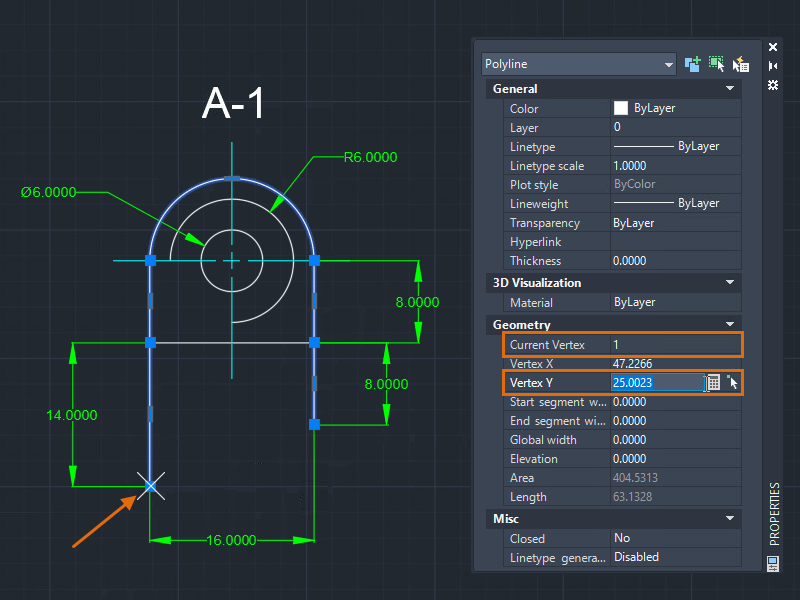

10. Change the Vertex X/Y values and see what happens. In this example, I changed the Vertex Y value (from 31.0023 to 25.0023) to move the first vertex vertically downward.

    Note: The dimension automatically updates when the vertex is changed.

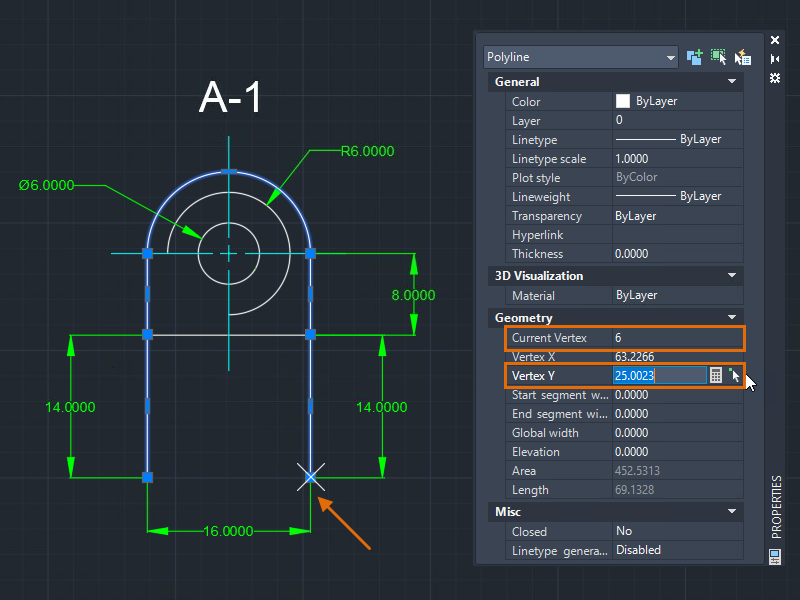

11. Select another vertex by clicking the arrows of the spinner next to the Current Vertex value. In this example, I chose the last vertex and specified the same Vertex Y value as the first vertex.


    Now, the first and last vertices of the polyline are aligned. This method of editing the vertices is useful when you know the absolute coordinates you want.

Edit the Properties of Multiple Objects

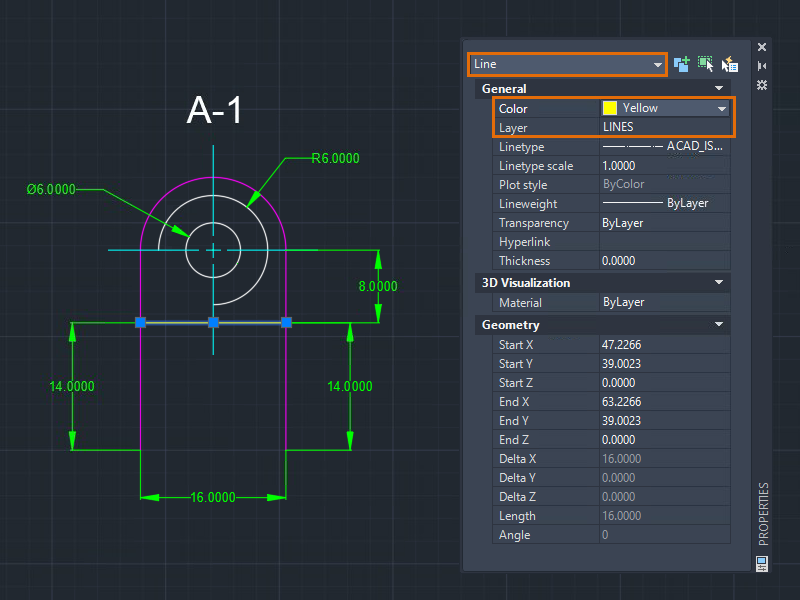

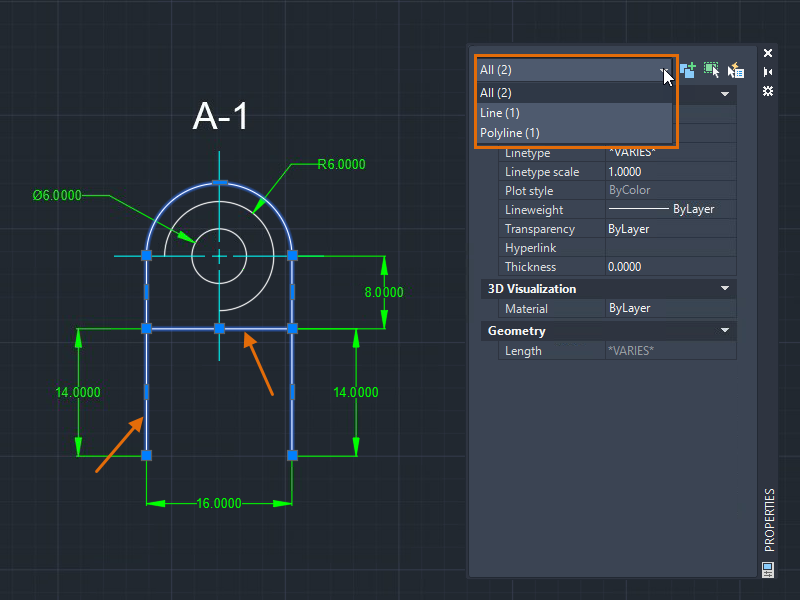

When you select multiple objects, only the common properties are displayed in the Properties palette. Some of these properties can be modified, and any change to a property is applied to all objects in the selection set. Use the Properties palette to set a property on multiple objects to the same value.

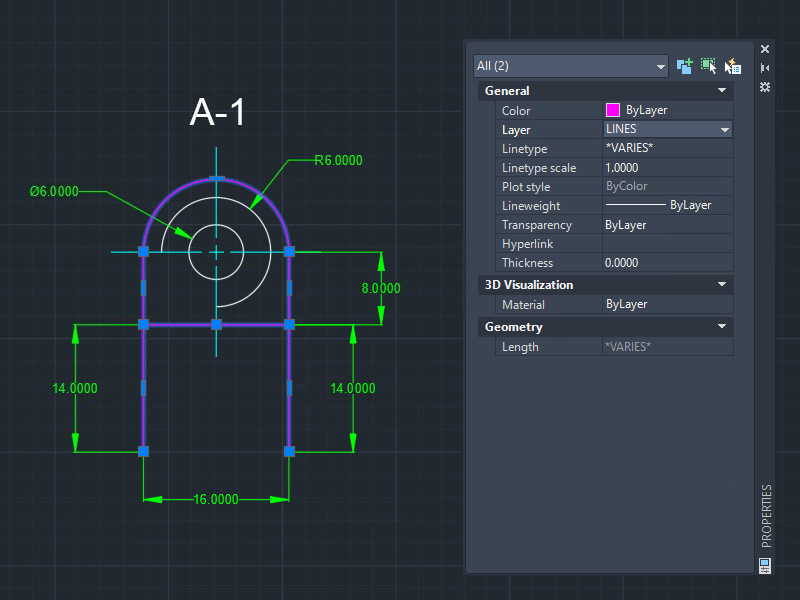

If all selected objects share the same value for a property, then that value is shown in the Properties palette. Otherwise, if the selected objects have different values for a property, *VARIES* is shown in the Properties palette.

Filter Objects by Type

Sometimes, we need a quick and simple way to filter objects. The Properties palette allows you to filter objects and apply changes to the selected objects by type.

1. With the Properties palette open, select all objects in the drawing.

   I continue working with the drawing created earlier. If you like, you can open a more complex drawing for this exercise.

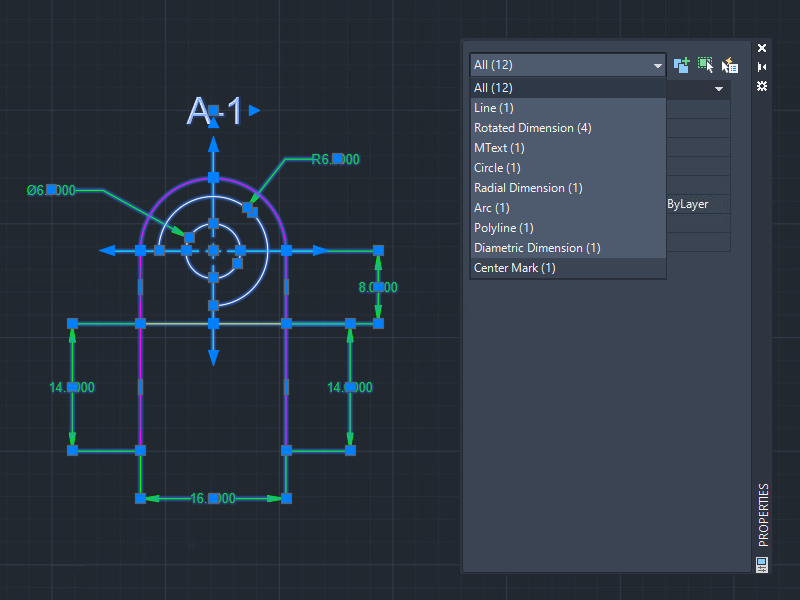

2. Click the Object Type Filter drop-down to view the object types and the number for each type in the selection set.

3. Select an object type from the drop-down, for example, Rotated Dimension, specify the following:
   • Layer: DIM
   • Text height: 1.0000
   Note: The selection set does not change even after selecting an object type. However, any information displayed in the Properties palette and any changes made only apply to the selected object type in the filter.
4. You can't select multiple object types using the object type filter on the Properties palette. To filter your selection results even further, click Quick Select to quickly create a selection set of objects based on specified criteria.

Find Geometric Information

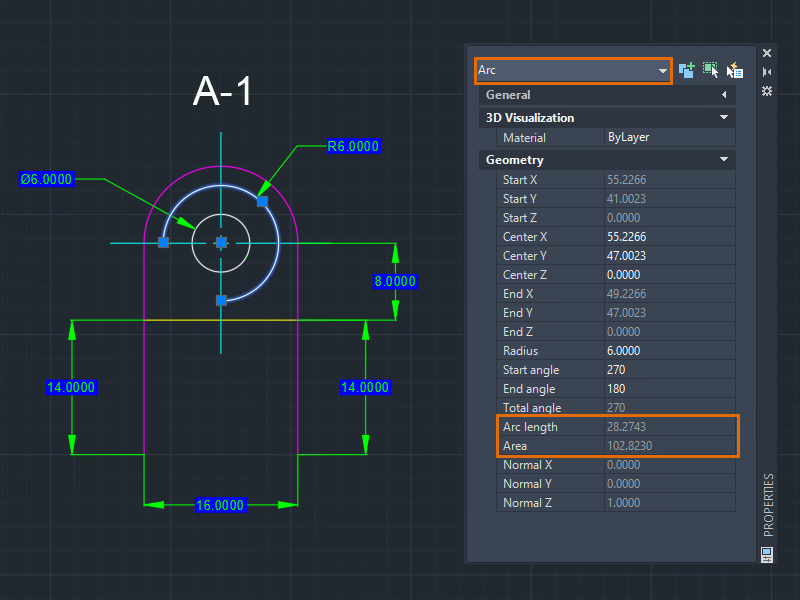

Obtaining geometric information can be done in many ways, for example, using dimensioning tools. But depending on the situation or complexity of the geometry, you might find it easier to view the properties of an object and then change the values in the Properties palette.

Let’s assume that you received a drawing with geometry that needs to be updated or converted to your company’s standard.

1. Select all dimensions.

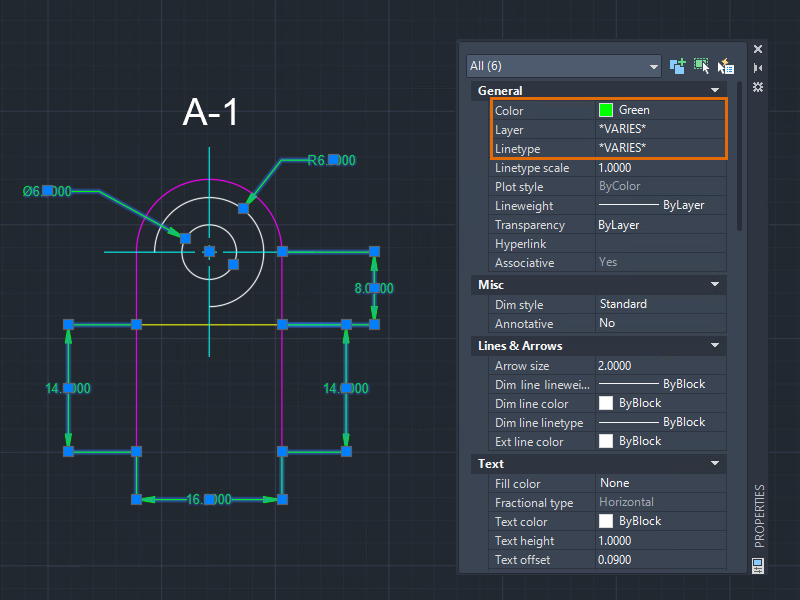

   Although the dimensions are displayed with the same color, you can see that the layer and linetype assigned to the dimensions vary.


2. To ensure proper layer standards, for example, DIM layer, are used for the dimensions, specify the following:
   • Color: ByLayer
   • Layer: DIM
   • Linetype: ByLayer

   You can change other properties to ByLayer, as required by your company.

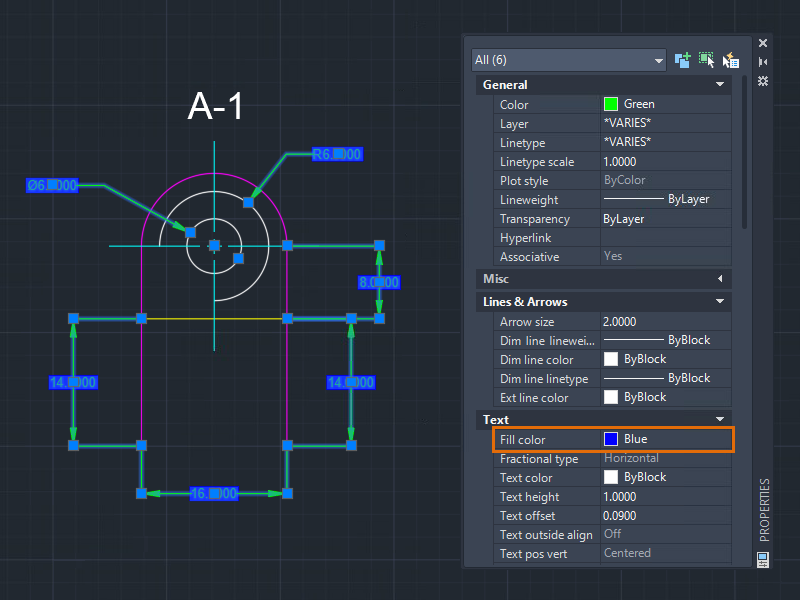

3. (Optional) Apply a background mask color to the dimension text. Under Text, Fill Color, select Background from the drop-down or select a color.


Create a Closed Object

One key consideration to successfully apply a hatch to an object is that its boundary should be closed. Although, you can specify settings such as the gap tolerance to allow hatching inside an open object, it is recommended to ensure that hatch areas are closed.

Sometimes it's hard to find and fix small boundary gaps specially when working in large or complex drawings. These unwanted gaps may prevent you from creating the desired hatch. With the Properties palette, you can easily close (or open) objects like polylines or splines.

1. With the Properties palette open, select the polyline.

   I continue working with the drawing created earlier. If you like, you can open a more complex drawing for this exercise.

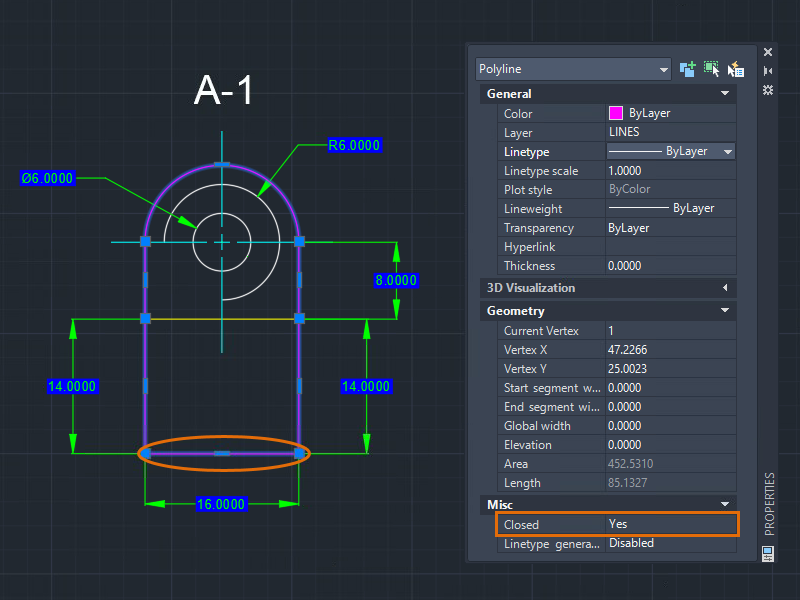

2. In the Properties palette, under Misc, click Closed and select Yes.


When you close the polyline, a line segment is created from the last vertex of the polyline to the first vertex. Closing the polyline using this method does not add a vertex to the object.

Check for Non-Coplanar Objects (AutoCAD Only)

In AutoCAD, all 2D geometric objects are created on the XY plane. But sometimes, objects get moved along the Z-axis either by design or by mistake. When objects are not on the same plane, object snaps might not work as expected or you might encounter an error when performing tasks such as creating fillets.

For this exercise, let’s move some objects along the Z-axis. To do this, you can orbit around or rotate the user coordinate system (UCS), and then move some objects along the Z-axis. For more information about the user coordinate system (UCS), see Have You Tried: Using the UCS for 2D Drafting.

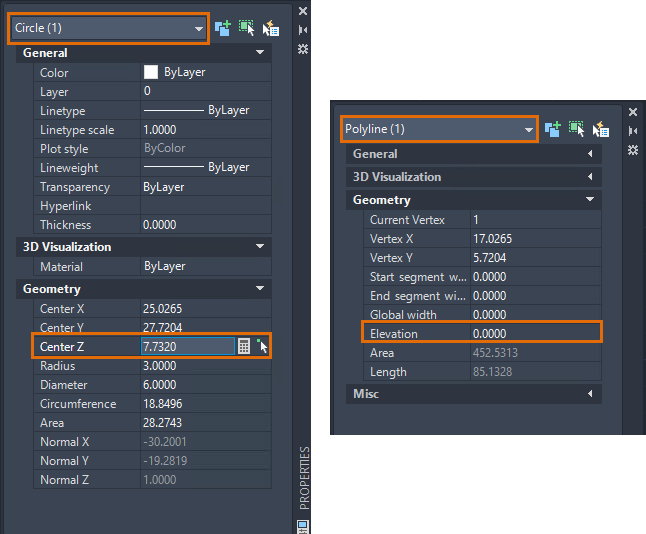

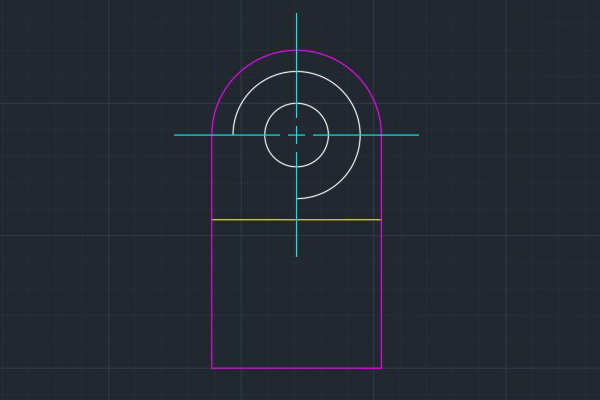

Using the same drawing from earlier, I moved the circle and the line in the middle along the Z-axis. Looking at the drawing from the Top view, it's not obvious that there are non-coplanar objects in the drawing.

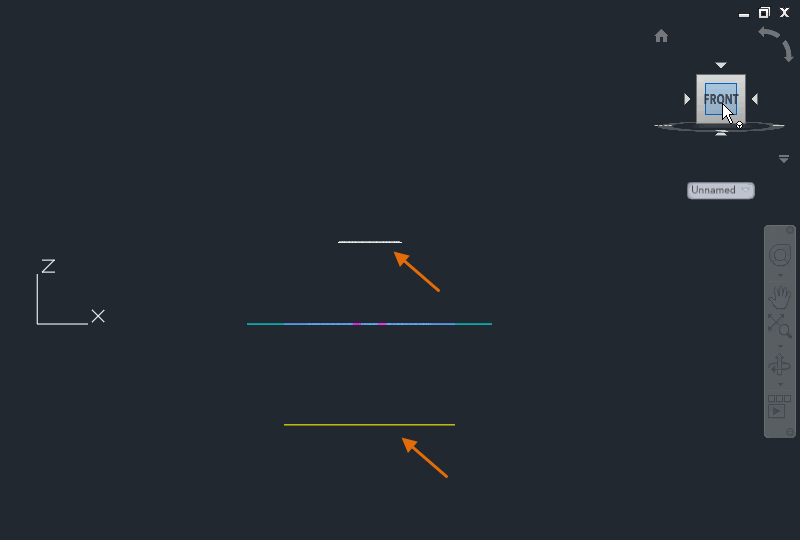

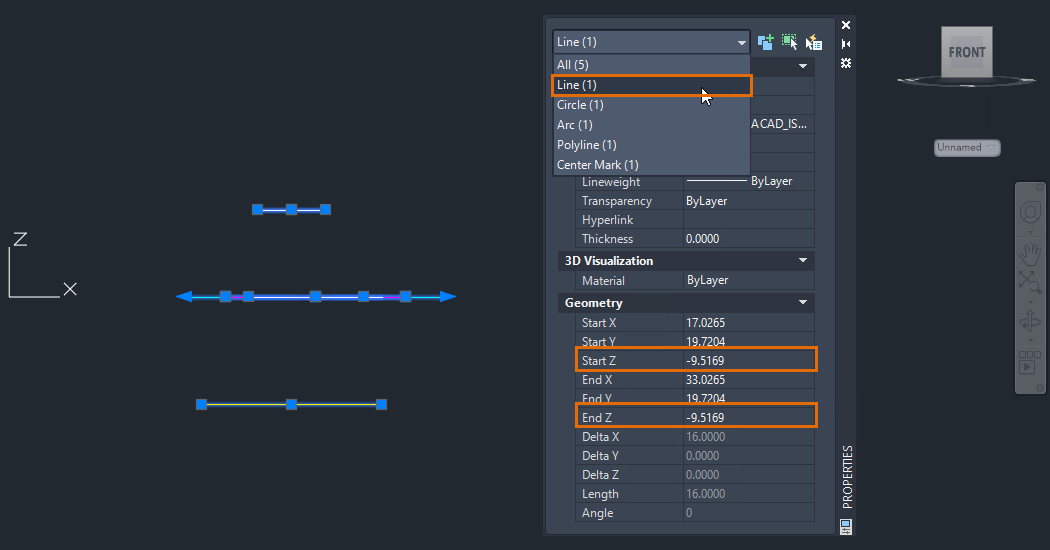

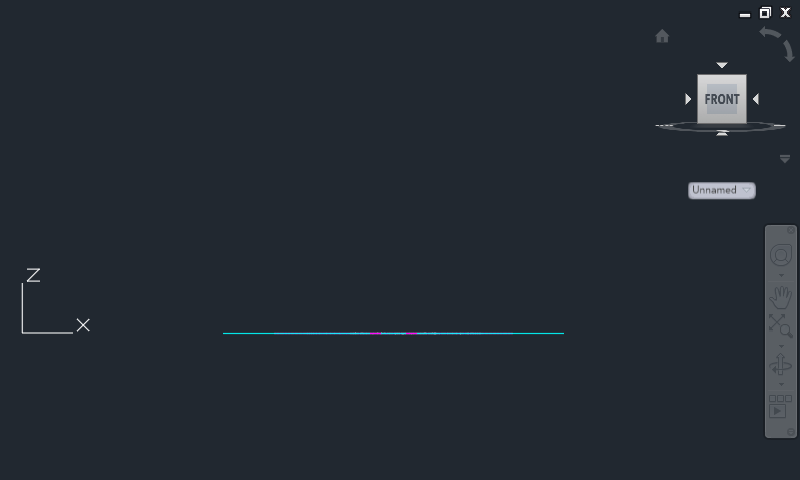

When you orbit or change the view, let's say to the Front view, you'll see that there are indeed non-coplanar objects placed along the Z-axis in the drawing.

Undo Properties Palette Changes

To undo the changes in the Properties palette one at a time, right-click anywhere on the palette and select Undo. You might not see the Undo option if you right-click on a text box in the palette.

Pressing Ctrl+Z while actively editing on the Properties palette does not undo the recent change.

Summary

The Properties palette is an essential tool for editing and obtaining geometric information. Simply select one or more objects and view object property changes in real-time with the palette. You might be surprised to find something in the Properties palette that you were not aware of before.

Related Commands and System Variables

Here are some frequently used commands and system variables related to Properties palette.
