Arc Object (ActiveX)

A circular arc.

Supported Platforms: Windows only

Class Information

Class Name

AcadArc

Object Inheritance
Object
   AcadObject
      AcadEntity
         AcadArc
Create Using

VBA

ModelSpace.AddArc
PaperSpace.AddArc
Block.AddArc
Access Via

VBA

ModelSpace.Item
PaperSpace.Item
Block.Item
SelectionSet.Item
Group.Item

Members

These members are part of this object:

Methods

Properties

Events

ArrayPolar

ArrayRectangular

Copy

Delete

GetBoundingBox

GetExtensionDictionary

GetXData

Highlight

IntersectWith

Mirror

Mirror3D

Move

Offset

Rotate

Rotate3D

ScaleEntity

SetXData

TransformBy

Update

Application

ArcLength

Area

Center

Document

EndAngle

EndPoint

EntityTransparency

Handle

HasExtensionDictionary

Hyperlinks

Layer

Linetype

LinetypeScale

Lineweight

Material

Normal

ObjectID

ObjectName

OwnerID

PlotStyleName

Radius

StartAngle

StartPoint

Thickness

TotalAngle

TrueColor

Visible

Modified

Remarks

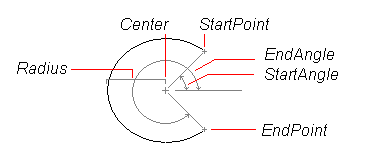

An arc is always drawn counterclockwise from the start point to the endpoint. The StartPoint and EndPoint properties of an arc are calculated through the StartAngle, EndAngle, and Radius properties.



To create an arc, use the AddArc method.
