Creates a wipeout object, and controls whether wipeout frames are displayed in the drawing.
Find
Creates a polygonal area that masks underlying objects with the current background color. The wipeout area is bounded by a frame that you can turn on or off. You can also choose to display the frame on screen and have it hidden for plotting.
The following prompts are displayed.

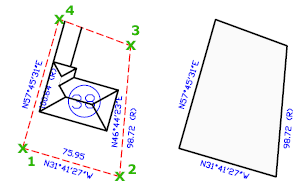

- First Point
-
Determines the polygonal boundary of the wipeout object from a series of points.
- Frames
-
Determines whether the edges of all wipeout objects are displayed or hidden.
Available Frames modes:- ON - frames are displayed and plotted
- OFF - frames are not displayed or plotted
- Display but not plot - frames are displayed but are not plotted
- Polyline
-
Determines the polygonal boundary of the wipeout objects from a selected polyline.
- Erase Polyline
-
Enter y to erase the polyline that was used to create the wipeout object. Enter n to retain the polyline.
