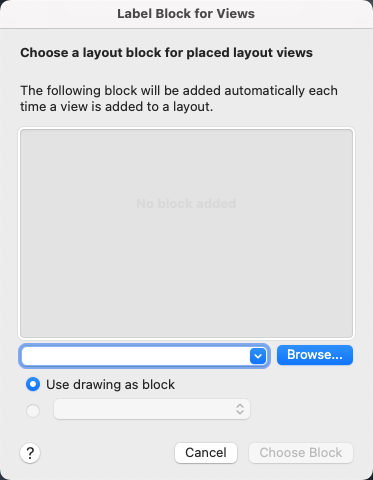

Label Block for Views Dialog Box

Adds a new label block for use in the current project.

SHEETSET (Command)

Menu: Window > Project Manager: Right-click a saved view in Project Manager > Place Label Block

List of Options

The following options are displayed.

Preview

Displays a preview image when a block is selected.

Drawing File Location

Specifies the path and name of a drawing (DWG) file or the name and path of a drawing template (DWT) file to be used as the source of a block definition.

Click Browse to display the Select Drawing dialog box and select the drawing file to use.

Note: The locations of the last five most recently selected drawing files are retained in the drop-down list.

Use Drawing as Block

Use the entire specified drawing or drawing template file as the block definition.

Choose Block in the Drawing File

Use a selected block definition from the specified drawing or drawing template file.
