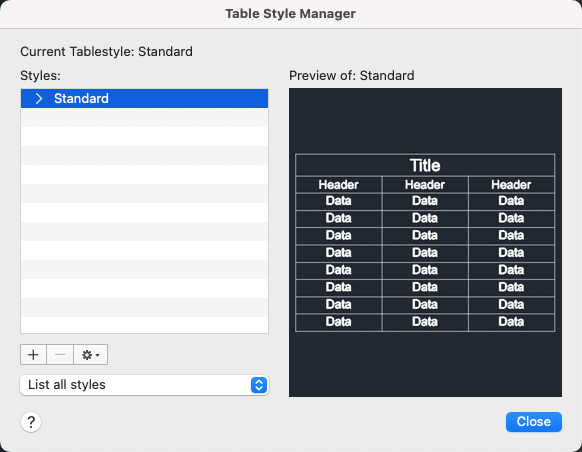

Table Style Manager Dialog Box

Creates and modifies table styles, which control the appearance of tables.

Access Methods

TABLESTYLE (Command)

Tool Sets: Drafting tab > Table panel > Table Style.

Menu: Format > Table Style.

The following options are displayed.

Current Table Style: Displays the name of the table style that is applied to tables you create. Right-click a table style name and select Set Current to change the current table style.
Styles: Displays a list of table styles. The current style is highlighted.
Preview Of: Displays a preview image of the style that is selected in the Styles list.
Set Current: Sets the table style selected in the Styles list as the current style. All new tables are created using this table style.
New: Coming soon: Displays the Create New Table Style dialog box, in which you can define new table styles.
Delete: Deletes the table style selected in the Styles list. A style that is being used in the drawing cannot be deleted.
Options: Displays the Modify Table Style dialog box, in which you can modify table styles.
