Saves objects or converts a block to a file.
WBLOCK (Command)
Tool Set:

Summary

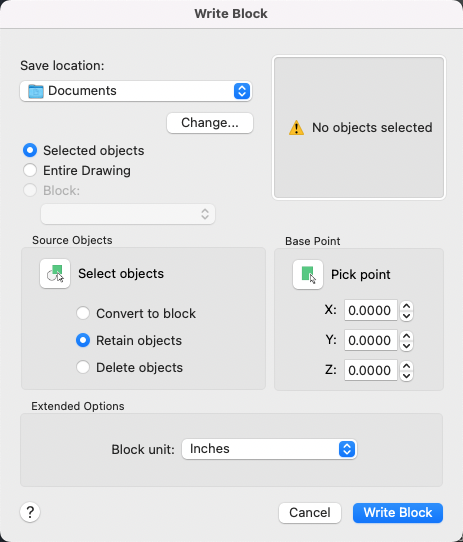

The Write Block dialog box displays different default settings depending on whether nothing is selected, a single block is selected, or objects other than blocks are selected.
List of Options
The following options are displayed.
Save Location
-
Specifies the new name and location of the file and the units of measurement to be used when the block is inserted.
- File Name and Path
-
Specifies a file name and path where the block or objects will be saved.
- Browse
-
Displays a standard file selection dialog box.
Preview
-
Displays a preview of the objects selected to be written to a drawing file.
Creation
Specifies blocks and objects, saves them as a file, and specifies insertion points.
- Selected Objects
-
Selects objects to save as a file. Specify a base point and select objects below.
- Entire Drawing
-
Selects current drawing to save as another file.
- Block
-
Specifies an existing block to save as a file. Select a name from the list.
Source Objects
-
Sets the effect of block creation on objects used to create a block.
- Select Objects Button
-
Temporarily closes the dialog box so that you can select one or more objects to save to the file.
- Convert to Block
-
Converts the selected object or objects to a block in the current drawing after saving them as a file.
- Retain objects
-
Retains the selected objects in the current drawing after saving them as a file.
- Delete objects
-
Deletes the selected objects from the current drawing after saving them as a file.
Base Point
Specifies a base point for the block. The default value is 0,0,0.
- Pick Point
-
Temporarily closes the dialog box so that you can specify an insertion base point in the current drawing.
- X
-
Specifies the X coordinate value for the base point.
- Y
-
Specifies the Y coordinate value for the base point.
- Z
-
Specifies the Z coordinate value for the base point.
Extended Options
- Blocks Unit
-
Specifies the unit value to be used for automatic scaling when the new file is inserted as a block in a drawing that uses different units. Select Unitless if you do not want to automatically scale the drawing when you insert it. See INSUNITS.
