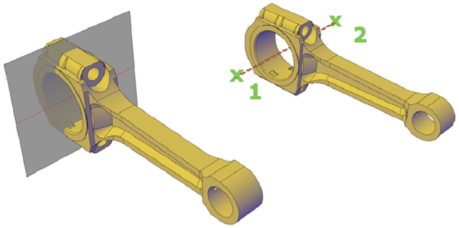

To Create a Section Object by Specifying Two Points

Create a straight cutting plane.

1. Click Modeling tab > Solid panel > Section Plane drop-down > Section Plane.
2. Specify the first point of the section object.
3. Specify the endpoint.

The section object is created between the two points. Live sectioning is turned off.
