How to extrude or offset a face or closed area using a press or pull operation.

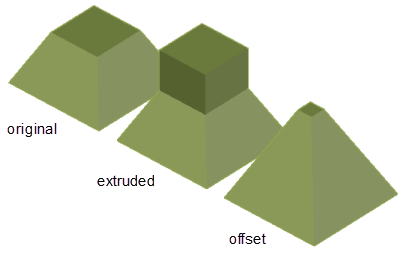

Pressing or pulling a face offsets the face and adjusts adjacent geometry. You can press the Ctrl key to switch between offset and extrusion modes.
Offset a 3D Solid Face by Pressing or Pulling
Use this method to adjust adjacent faces to the new position of the offset face.
- Click
.
- Press Ctrl+click a bounded area on a 3D solid object and move the cursor to establish an offset direction.
Edge highlighting indicates which areas will be offset.
- Enter a value or click in the drawing area to set the offset distance.
Extrude a 3D Solid Face by Pressing or Pulling
Use this method if you want adjacent faces to remain unaffected by the new position of the offset face.
- Click
.
-
Click a face on a 3D solid object and move the cursor to establish an offset direction.
Highlighting indicates which faces can be offset
- Enter a value or click in the drawing area to set the extrusion distance.
Offset Multiple Faces by Pressing or Pulling
You can use PRESSPULL to simultaneously offset planar and non-planar faces and areas on the same or different objects. All items in the selection set must be of the same type as the first (either a face or bounded area).
- Click
.
- Enter m (Multiple).
- Select the faces or areas to be modified and press Enter.
- Enter a value or click in the drawing area to set the extrusion distance.
