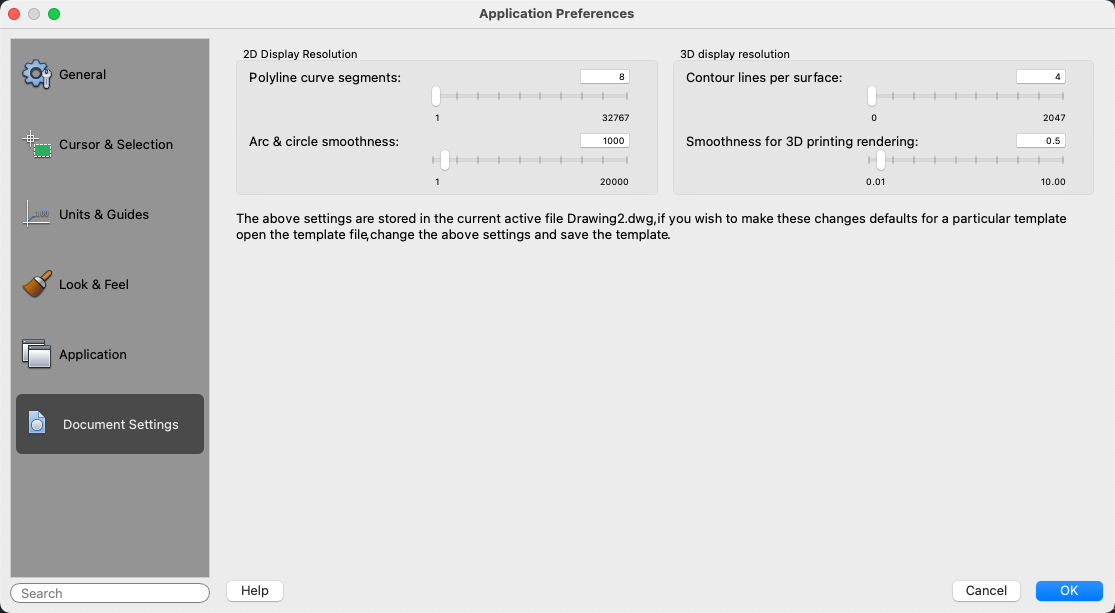

Document Settings Tab (Application Preferences Dialog Box)

Controls the display settings for a drawing.

OPTIONS (Command)

Menu: AutoCAD 2025 > Preferences

List of Options

The following options are displayed.

2D Display Resolution

Controls the display of 2D objects.

Polyline Curve Segments: Sets the number of line segments to be generated for each spline-fit polyline generated by the Spline option of the PEDIT command. (SPLINESEGS system variable)
Arc & Circle Smoothness: Sets the resolution for objects in the current viewport. (VIEWRES command)

3D Display Resolution

Controls the display of 3D objects.

Contour Lines per Surface: Specifies the number of contour lines per surface on objects. (ISOLINES system variable)
Smoothness for 3D Printing and Rendering: Adjusts the smoothness of shaded and rendered objects and objects with hidden lines removed. (FACETRES system variable)
