ARRAYRECT (Command)

Distributes object copies into any combination of rows, columns, and levels.

Access Methods

Tool Set: Drafting tab > Modify panel > Array drop-down > Rectangular Array.

Menu: Modify > Array > Rectangular Array.

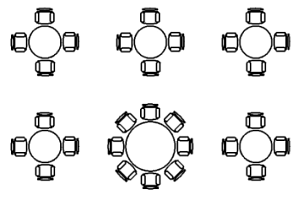

2D rectangular array with one item replaced

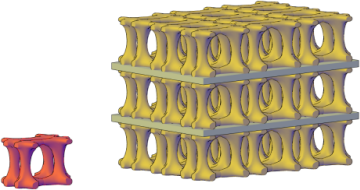

3D rectangular array with three levels

This command is equivalent to the Rectangular option in ARRAY. The DELOBJ system variable controls whether the source objects of the array are deleted or retained after the array is created.

Note: The 3D objects in the example cannot be created in AutoCAD LT.

After selecting objects to array, the Create Array visor for rectangular arrays is displayed. You can also use the Properties Inspector to set the properties of the new array while it is being created.

The following prompts are displayed.

Select objects

Select the objects to use in the array.

Associative

Specifies whether the arrayed objects are associative or independent.

Yes: Contains array items in a single array object, similar to a block. With an associative array, you can quickly propagate changes throughout the array by editing the properties and source objects.
No: Creates array items as independent objects. Changes to one item do not affect the other items.

Base point

Defines the location of the array base point and base point grip.

Base point: Specifies a base point for positioning the items in the array.
Key point: For associative arrays, specifies a valid constraint (or key point) on the source objects to align with the path. If you edit the source objects or path of the resulting array, the base point of the array remains coincident with the key point of the source objects.

Count

Specifies the number of rows and columns and provides a dynamic view of results as you move the cursor (a quicker alternative to the Rows and Columns options).

Expression: Derives the value based on a mathematical formula or equation.

Spacing

Specifies row and column spacing and provides a dynamic view of results as you move the cursor.

Distance between rows: Specifies the distance between each row, measured from equivalent locations on each object.
Distance between columns: Specifies the distance between each column, measured from equivalent locations on each object.
Unit cell: Specifies the distance between rows and columns simultaneously by setting the each corner of a rectangular area that is equivalent to the spacing.

Columns

Edits the number and spacing of columns.

Number of columns: Sets the number of columns in the array.
Distance Between Columns: Specifies the distance between each column, measured from equivalent locations on each object.
Total: Specifies the total distance between the start and end column, measured from equivalent locations on the start and end objects.

Rows

Specifies the number of rows in the array, the distance between them, and the incremental elevation between row.

Number of rows: Sets the number of rows in the array.
Distance between rows: Specifies the distance between each row, measured from equivalent locations on each object.
Total: Specifies the total distance between the start and end row, measured from equivalent locations on the start and end objects.
Incrementing elevation: Sets the increasing or decreasing elevation for each subsequent row.
Expression: Derives the value based on a mathematical formula or equation.

Levels

Specifies the number and spacing of levels for 3D arrays.

Number of levels: Specifies the number of levels in the array.
Distance between levels: Specifies the difference in Z coordinate values between equivalent locations on each object.
Total: Specifies the total difference in Z coordinate values between equivalent locations on objects in the first and last levels.
Expression: Derives the value based on a mathematical formula or equation.

Exit

Exits the command.
