Creates centerline geometry associated with selected lines and polylines.
Access Methods
Tool Set:
.
Menu: .
The following prompts are displayed.

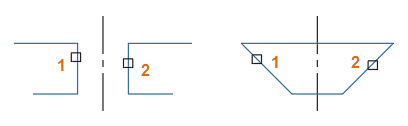

- Select First Line
- Specifies the first of the two lines required.
- Select Second Line
- Specifies the second of the two lines required.
- Layer
- Assigns new centerlines to the specified layer, overriding the current layer. Enter Use Current or "." to use the current layer. (CENTERLAYER system variable)
Note: Annotative scaling and dimension style support is not available for centerlines.
