Creates a 3D solid box.
Access Methods
Tool Set:
.
Menu: .
List of Prompts
The following prompts are displayed.
Specify first corner or [Center]: Specify a point or enter c for center
Specify other corner or [Cube/Length]: Specify the other corner of the box or enteran option
If the other corner of the box is specified with a Z value that differs from the first corner, then no height prompt is displayed.

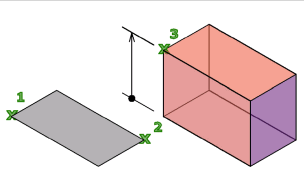

Specify height or [2Point] <default>: Specify the height or enter 2P for the 2 Point option
Entering a positive value draws the height along the positive Z axis of the current UCS. Entering a negative value draws the height along the negative Z axis.
The base of the box is always drawn parallel to the XY plane of the current UCS (work plane). The height of the box is specified in the Z-axis direction. You can enter both positive and negative values for the height.
Center
Creates the box by using a specified center point.
- Cube
-
Creates a box with sides of equal length.
- Length
-
Creates a box with length, width, and height values you specify. The length corresponds to the X axis, the width to the Y axis, and the height to the Z axis.
Cube
Creates a box with sides of equal length.
Length
Creates a box with length, width, and height values you specify. If you enter values, the length corresponds to the X axis, the width to the Y axis, and the height to the Z axis. If you pick a point to specify the length, you also specify the rotation in the XY plane.
2Point
Specifies that the height of the box is the distance between the two specified points.
