Open the Model with ANSYS Workbench

Video Player is loading.

Current Time 0:00

/

Duration 0:17

Loaded: 0%

Progress: 0%

A model of the radiator tank has been created for ANSYS Workbench and ANSYS Mechanical. To begin working with the model:

Open the Workbench project file radiatortank.wbpj.

Note: Ignore the warning about the missing files
Right click Model in the Static-Structural analysis system and choose Edit. This will open the model in ANSYS Mechanical.

open model

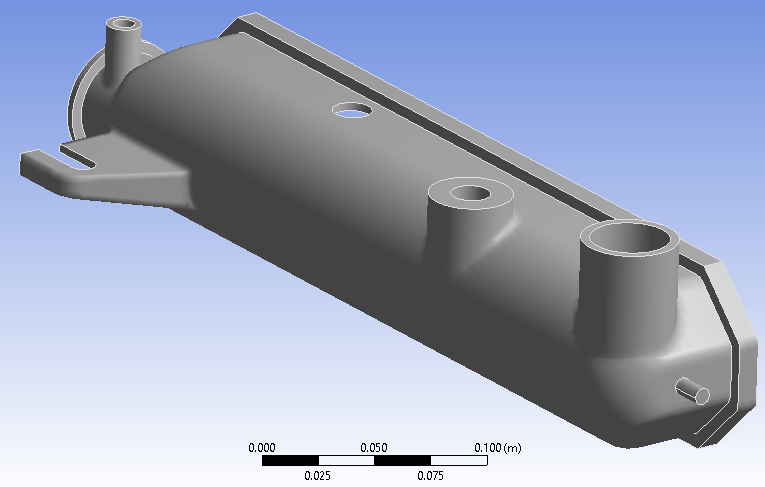

At this stage, only the tank geometry and the mesh have been created.
