Cut circular contours defined by a center and a circle point from a plate.
The cuts can be attached as inner contours as well as outer contours. The rectangle size is set by the defaults.
Access the command
Features tool palette:
(Circular contour, 2 points).
Command line: _AstM4PlateInnerContour CIRCLE2DIG

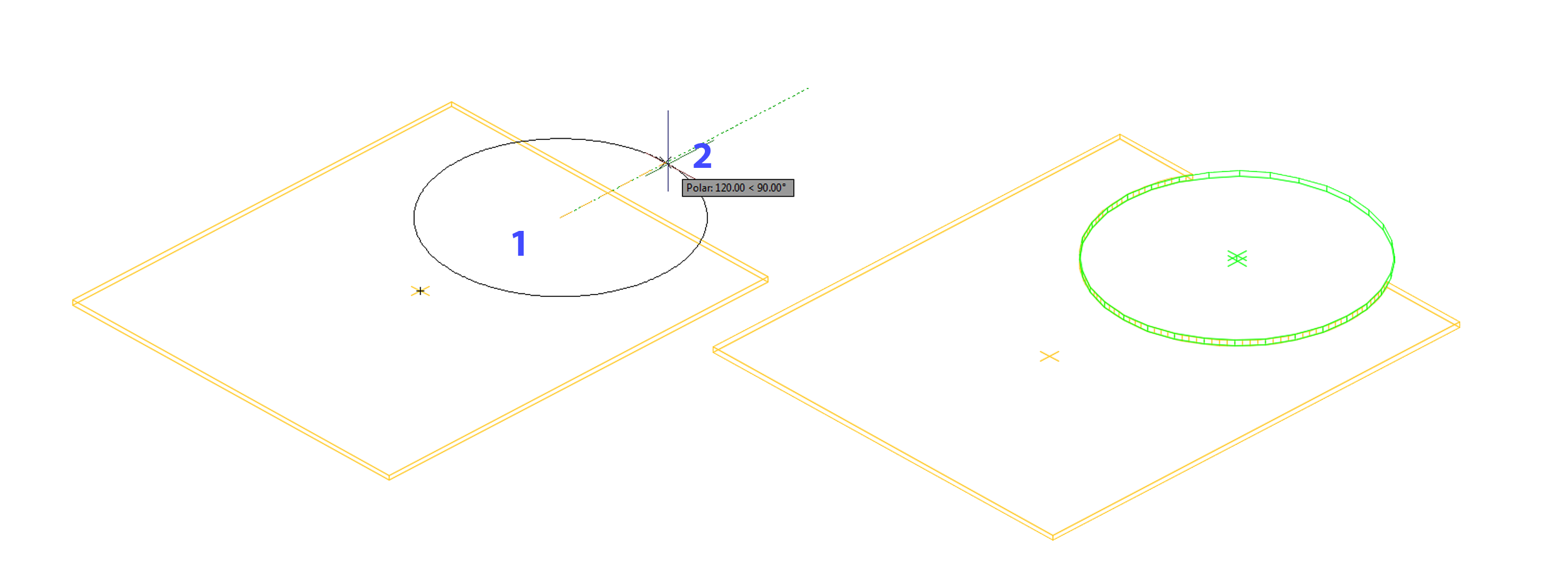

Create a circular contour using the center and a circle point
- In the Features tool palette, click
(Circular contour, 2 points).
- Select the plate to process.
- Define the center of the circular contour to create in the selected plate.
- Define a point for the circle radius.
- The contour is created.
