Settings - Coordinates

ART Task Name

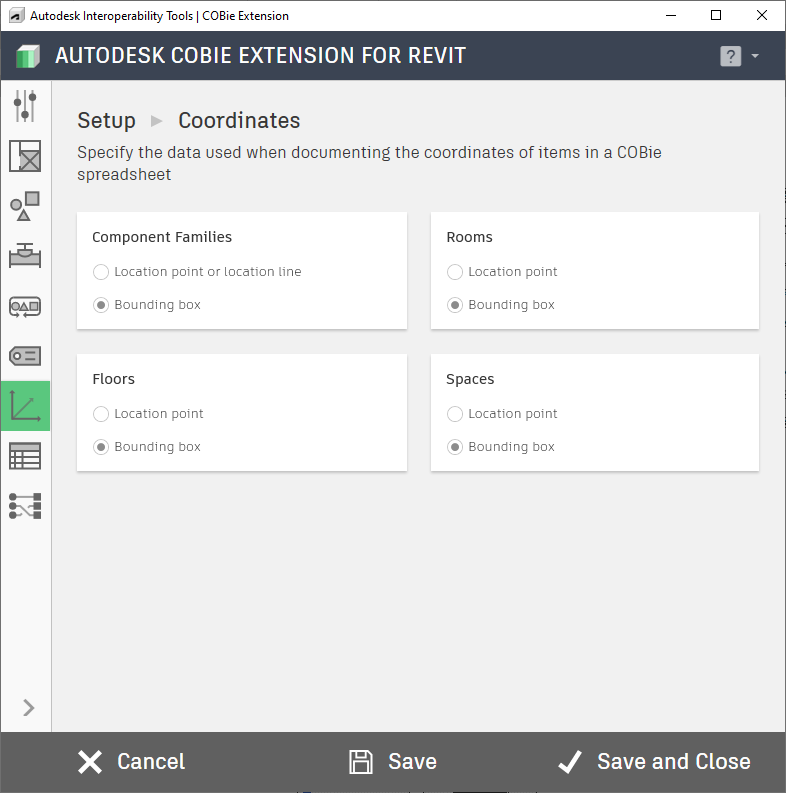

The Coordinates dialog controls what data is used from Revit to populate certain fields on the “Coordinate” COBie worksheet. Those data fields include:

  • CoordinateXAxis
  • CoordinateYAxis
  • CoordinateZAxis
  • ClockwiseRotation
  • ElevationalRotation
  • YawRotation

The default option for each coordinate type is “Bounding Box”.

Once you have your settings configured properly, use the save button in the action bar to save your settings. If you are done setting up your model for the COBie Extension, you can use Save and Close to update settings and close this dialog.

For more information, sample files, and downloads, visit the COBie Extension for Revit page on the Autodesk Interoperability Tools website.

Parent page: COBie Extension for Revit
