Use this procedure to divide an extruded 3D space into smaller spaces by using a divide line. The space is split at the line.
Note: This procedure is valid for non-associative spaces only.
All properties - like for example property data, calculation modifiers, or boundary offset types - will be applied to both resulting spaces.
Attention: If you are dividing a space with manual boundary offsets, verify that the all boundaries are activated. Boundaries that are not activated are not divided.

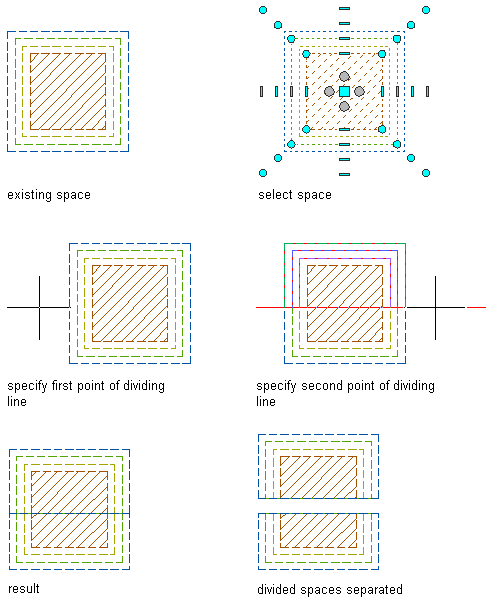

- Select a space to divide, right-click, and click AEC Modify Tools
Divide
. - Specify the divide line start point.
- Specify the divide line endpoint.
Depending on the boundary offset type, the divide line will create different results for the net, usable, and gross, boundaries.
