To Use Edge Grips to Convert a Wall Endcap Edge to an Arc

Use this procedure to convert a wall component edge to an arc with Edge grips.

1. Select the wall segment with the wall endcap to modify.
2. Click Wall tabEndcap panelEndcap Edit In Place.
3. Specify a point at the wall endcap.
4. Move your cursor over the Edge grip to display the available modes.
5. Select the Edge grip, and then press Ctrl twice.
6. Specify a new location for the Edge grip.
7. Save or discard your changes:

   If you want to...	Then...
   Save any changes you made during the edit-in-place session as a new style	click Edit In Place tabEdits panelSave As.
   Discard any changes you made during the edit-in-place session	click Edit In Place tabEdits panelCancel.
   Save any changes you made during the edit-in-place session	click Edit In Place tabEdits panelFinish.

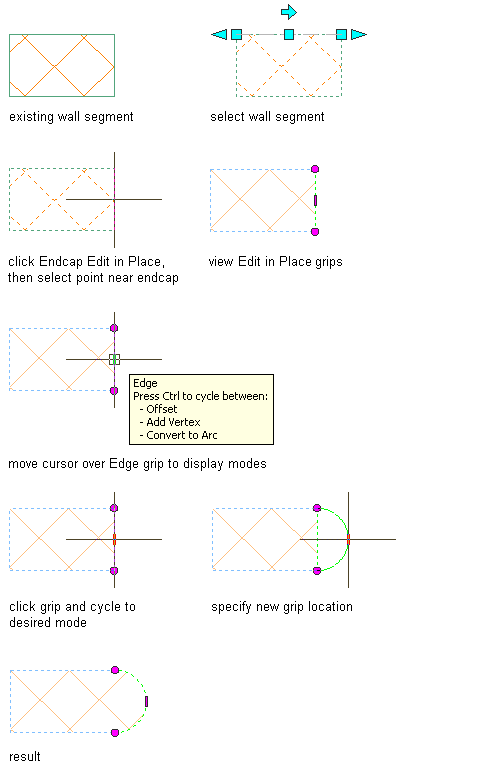

   In the following example, a wall endcap edge is converted to an arc with an Edge grip.
