To Split Surfaces of 3D Freeform Spaces

You can split a surface of a 3D freeform space. This is useful when you need to change the geometry of only one part of a space surface, as when creating a cable channel in a space ceiling.

Splitting a surface

1. Select the space where you want to split a surface.

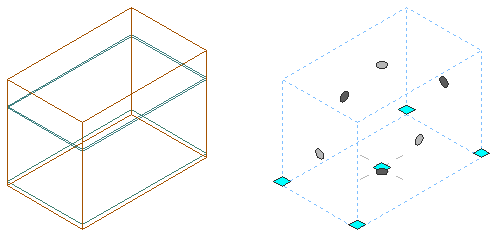

   3D space (left) in in-place editing mode (right)

2. Click Space tabModify panelEdit In Place.
3. Click Edit In Place tabModify panelSplit Face.

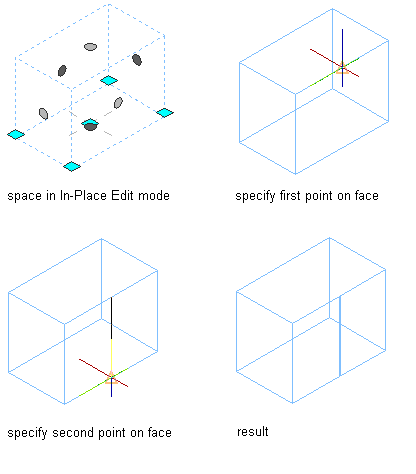

4. Select the start point of the splitting line.
5. Select the endpoint of the splitting line.
6. To save the changes to the space, click Edit in Place tabEdits panelFinish.
