5.1.0.0 - Arnold for 3ds Max

30 Mar 2022

MAXtoA 5.1.0.41 is a feature release, included in 3ds Max 2023, and updating to Arnold 7.1.0.0

Installation

1. Download Arnold for 3ds Max.
2. Follow the installation instructions.

System Requirements

• Autodesk 3ds Max 2020, 2021, 2022, 2023.

• Windows 10 or later, with the Visual Studio 2019 redistributable.

• Linux with at least glibc 2.17 and libstdc++ 4.8.5 (gcc 4.8.5). This is equivalent to RHEL/CentOS 7.

• macOS 10.13 or later .

• CPUs need to support the SSE4.1 instruction set. Apple Mac models with M series chips are supported under Rosetta 2 mode.

• GPU rendering works on Windows and Linux only and requires an NVIDIA GPU of the Ampere, Turing, Volta, Pascal, or Maxwell architecture.

• Optix™ denoiser requires an NVidia GPU with CUDA™ Compute Capability 5.0 and above.

Enhancements

• MAXTOA-1277 - Triplanar shader now with different texture on each axis

• MAXTOA-1281 - Ray depth values should be capped to 100

• MAXTOA-1290 - Add flip_on_opposite_direction parameter to triplanar

• Improved IPR interactivity: GPU and CPU interactivity is improved. ARNOLD-11981, ARNOLD-12007

• Stability improvements: We've improved the stability of Arnold, especially when using multiple render sessions.

• Per axis texture in triplanar: The triplanar shader can now optionally use different textures for each axis. ARNOLD-11708.

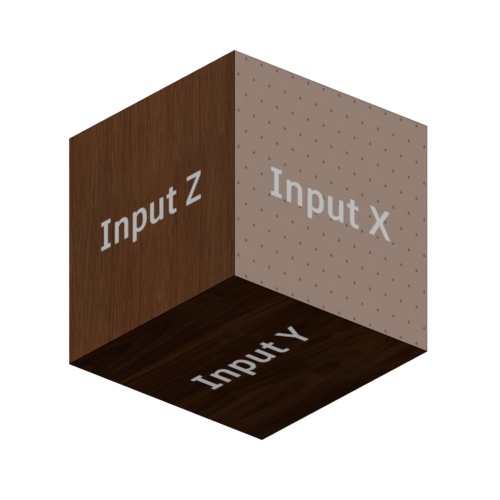

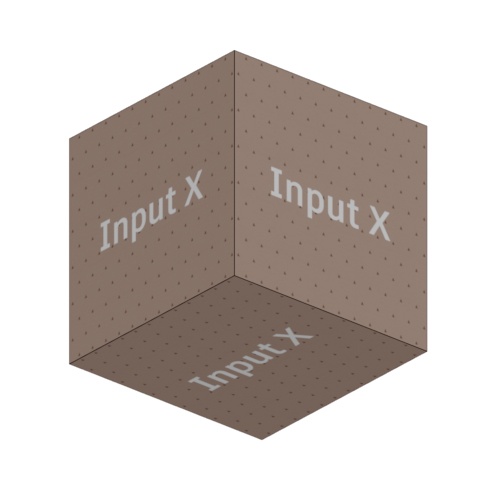

input_per_axis: disabled (default)	input_per_axis: enabled

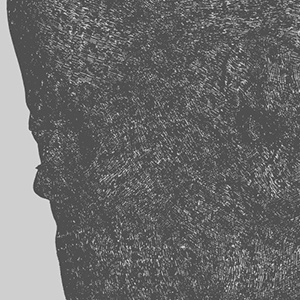

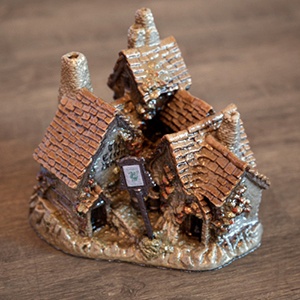

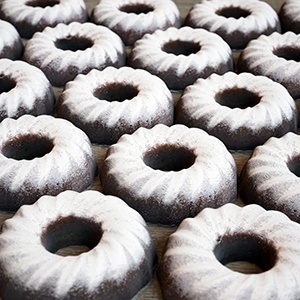

A wide range of shading effects such as snow, dust, sand, and moss, can be achieved using input_per_axis (Y).

_{Compare images with and without triplanar.input_per_axis (Y)}

A video that shows how to use the input_per_axis can be found here.

• Flip_on_opposite_direction in triplanar: A new parameter called flip_on_opposite_direction can also be used to control the behavior of the shader on faces facing the corresponding negative axis. ARNOLD-11615.

flip_on_opposite_direction: enabled (default)	flip_on_opposite_direction: disabled

• Reduced overhead of running Imagers in IPR: Imagers will no longer always run after every progressive pass or bucket update. This can give a substantial speedup with expensive to run imagers. ARNOLD-11760

• Better startup and update times with atmosphere shader: Starting renders and updating parameters when using a high number of AA samples with a volume_scatter atmosphere shader should now be much faster. ARNOLD-5503

  Render times of a simple scene with volume_scatter.samples=30:

• Case insensitive output image file extension: AiFindDriverType() is now case insensitive, so asking, for instance, for a "png", "PNG", or "Png" will all return the png driver. This can be observed with kick -o , which will now work for different case types. ARNOLD-11934

• Updated MaterialX to 1.38.3: We now use MaterialX 1.38.3. Surface materials defined in a nodegraph are now supported. ARNOLD-10534, ARNOLD-11903

• Updated Alembic to 1.8.3: The alembic procedural has been upgraded to use version 1.8.3 of the alembic library. ARNOLD-11973

• Faster TextureResolveUseExistingTx: The TextureResolveUseExistingTx stage is now much faster when many threads are trying to open textures for the first time with the use existing tx option enabled. On a 128-core machine we saw about an 8x speedup. ARNOLD-11689

• Faster per-pixel imagers: We removed overhead in imagers that can execute independently on each pixel. The exposure and tonemap imagers, for instance, are now significantly faster. This likely will be most noticed when interacting in IPR with small buckets. Note that bloom and denoising imagers require access to all pixels and so will not benefit from this optimization. ARNOLD-12011

• Faster bloom imager: The bloom imager has been optimized. In one test we saw a 10% performance improvement. ARNOLD-11568

• AOV denoising with the OptiX denoiser: Upgraded from the Optix 6 to Optix 7 denoiser. This newer denoiser supports denoising AOVs in a way that allows the denoised result to be compositable. Prevoius OptiX denoisers had no guarantees that the denoised results would combine correctly. ARNOLD-11726

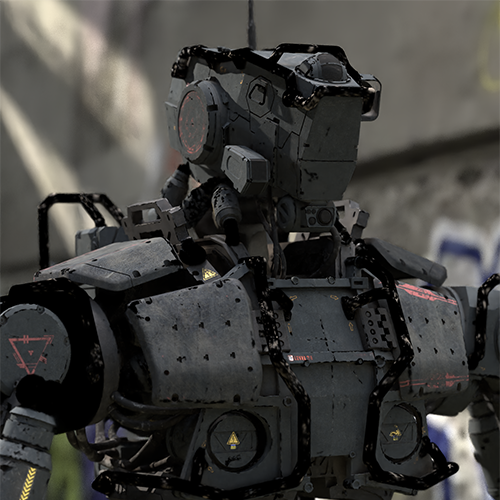

  Original beauty	Denoised beauty	Denoised diffuse AOV	Denoised specular AOV	Denoised diffuse + denoised specular

• Upgraded OIIO to 2.4.0: This allowed for fixing several defects listed in the Bug Fixes section. ARNOLD-11651, ARNOLD-11785, ARNOLD-11790

• Invert view and display transform for textures using OCIO: When using an explicit OCIO or the default color manager, it is possible to specify both a display and view transform when writing outputs, using the View ( Display ) syntax. It is now possible to use the same syntax for input color transforms as well. For example, reading a texture using the ACES 1.0 SDR-video ( sRGB ) color space will correctly invert a file with a view transform baked in. (ARNOLD-11961).

GPU Enhancements

• Improved GPU IPR interactivity: GPU IPR rendering is now more interactive. ARNOLD-11981

USD Enhancements

• Point Instancer improvements: Per-instance primvars and nested instancers are now handled both in the procedural usd#944 as well as the render delegate usd#482
• Mesh builtin normals: The procedural now reads the builtin USD description for mesh normals usd#962 usd#986
• Curves UVs: The procedural now supports UVs on curves, for per-strand primvars usd#975
• Light-linking: ignoreRoots wasn't supported correctly for light / shadow links in the procedural usd#987
• Shadow parameters: The procedural now reads shadow parameters (enable, color) from USD lights usd#945
• Shader connections to array attributes: The render delegate now supports rendering shader connection to an array attribute. This is needed e.g. to have shader connections on ramps usd#970
• Render tags: Render tags are now taken into account by the render delegate usd#883
• Procedural search path: USD is now properly considering the options procedural_search_path when loading nested procedurals #usd942
• Motion blur with UsdSkel: the procedural now extends the interval used to bake the skinning, so that it includes surrounding integer frames usd#951

Bug Fixes

• MAXTOA-1067 - Let the user select the AOVs' output type

• MAXTOA-1264 - No more warning about the OCIO config file

• MAXTOA-1288 - Crash when rendering a sequence with a scene that contains a RenderTimeInstanceObject

• MAXTOA-1291 - The RenderTimeInstance_Translator causes warnings to be logged when it tries to access node parameters that don't exist

• ARNOLD-11958 - Color correct shader produces incorrect values with small gamma values

• ARNOLD-11852 - Memory leak with imagers when rendering multiple frames

• ARNOLD-11835 - Full frame imagers crash with negative render region

• ARNOLD-11827 - Intel Alder Lake CPUs did not always use high performance cores in Windows

• ARNOLD-11795 - Spotlight penumbra should affect the specular intensity

• ARNOLD-11667 - GPU and CPU+FIS filtering generated sampling patterns that could alias

• ARNOLD-11242 - 'n' key was no longer toggling AI denoisers in kick IPR

• ARNOLD-10400 - Volume motion blur advection computation was incorrect

• ARNOLD-10391 - Volume motion blur used incorrect motion/shutter intervals

• ARNOLD-11889 - Maketx --monochrome-detect should generate Y not R image for exr formats

• ARNOLD-11968 - AiUniverseGetRenderSession returns invalid pointer instead of null if the session was previously destroyed

• ARNOLD-11982 - Texture invalidation in Linux and macOS occurred even when texture was not modified

• ARNOLD-12055 - [GPU] Crash switching from CPU to GPU with optix denoiser

• ARNOLD-10577 - [GPU] Textured skydome_light leaks memory over multiple frames in a session
