_{Anisotropic brushed metal effect visible in the base of the pot}

This short tutorial will show you how to create a realistic steel shader with anisotropic reflections to create a brushed metal effect on the base of a pot. Anisotropic reflections are based on the orientation of small grooves (bumps, fibers or scratches) that exist on a reflective surface. We will achieve this effect using a combination of a radial ramp connected to the anisotropy and a noise texture connected to the bump map attribute.

An example scene file can be downloaded here.

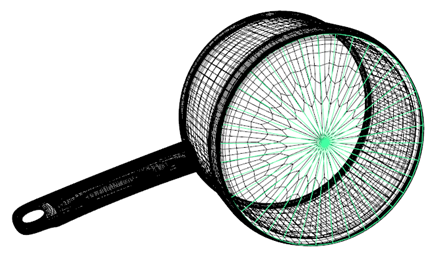

• Select the bottom of the pot and assign a standard surface shader to it. Rename it to 'Base'.

_{Assign standard surface shader to base of pot}

Specular Shading

Now we are going to create the steel shader with the brushed metal effect.

• Reduce the base weight to around 0.4.
• Reduce the specular weight and increase the specular roughness to around 0.5. This will give us a softer anisotropic effect. You may need to adjust the specular rotation to match your lighting. In this case, it is 0.4.

Ramp RGB

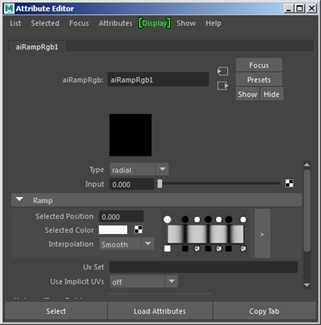

• Connect a ramp rgb to the specular anisotropy parameter.
• Change the ramp rgb type to radial. Insert four black and four white colors into the ramp. Change their interpolation to smooth.

You may notice faceting appears in specular highlights when using anisotropy. It is possible to remove the faceted appearance by enabling smooth tangents for the Arnold attributes of the mesh. Take into account this requires a subdivision iteration of at least one in the polymesh to work.

The Anisotropic brushed metal effect should now be visible at the base of the pot. However, it is lacking the bumped ridges associated with this effect.

_{Ramp RGB -> specular anisotropy of standard surface}

Bump Map

Now we need to create a scratch effect and connect it to the bump attribute to achieve a subtle brushed metal effect. We can do this using the following shaders:

RampFloat -> Noise -> bump2d

• Create a bump2d and connect it to the normal camera of the pots base shader. Set the bump height to around 0.5.
• Create a noise shader and connect it to the bump map of the bump2d. Change octaves to 8 and amplitude to around 0.4.
• Create a rampFloat and connect it to the scale of the noise shader. Change the type to circular. This will give us the concentric ring effect that we want.

Photoshop

You can create a scratch map in Photoshop and connect it to the bump attribute to achieve a subtle brushed metal effect.

• Go to Filter-> Noise-> Add Noise to add some noise to the image.
• Go to Filter-> Distort-> Twirl to add a circular effect to the noise. You may need to do this two or three times to get the desired effect. Crop the image and save it.

• Create a file texture and open the saved noise image. Connect it to the bump attribute of the Base shader.

That concludes this short tutorial on how to create an anisotropic brushed metal shader.

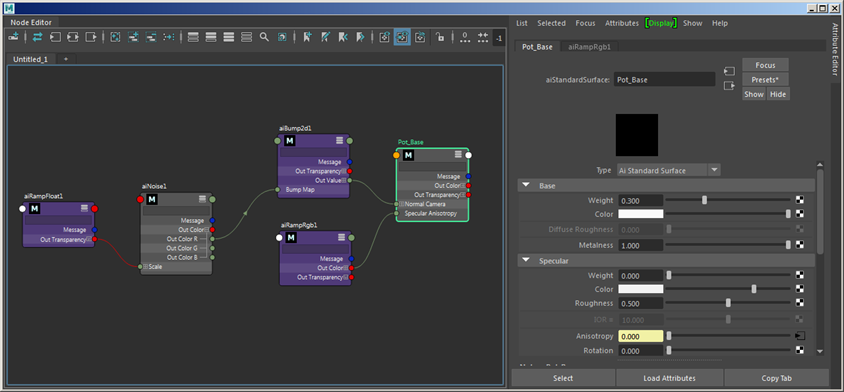

_{Final shading network}
