Disk Light - Arnold User Guide
![]() |
![]() |

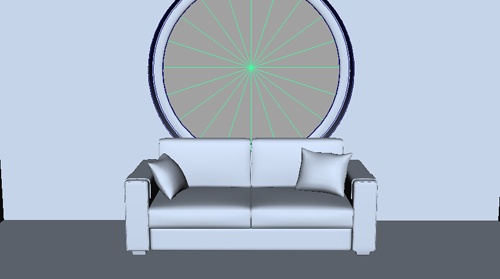

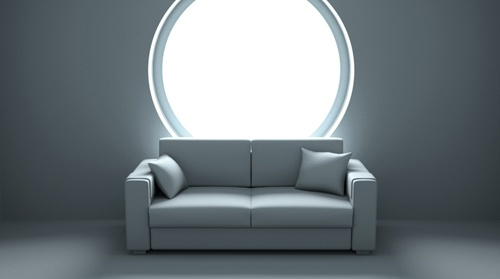

The disk light shape simulates light from a circular area source (flat disk).
The lights page has more detail about the controls.
Spread
Emits light focused in the direction along the normal. The default Spread value of 1 gives diffuse emission, while lower values focus the light more until it becomes almost a laser-like beam at value 0. Currently fully focused laser beams at value 0 are not supported, there is always a small minimum Spread. Low Spread values can be noisier than the default high Spread, so be careful when using them.
![]() |
![]() |
![]() |

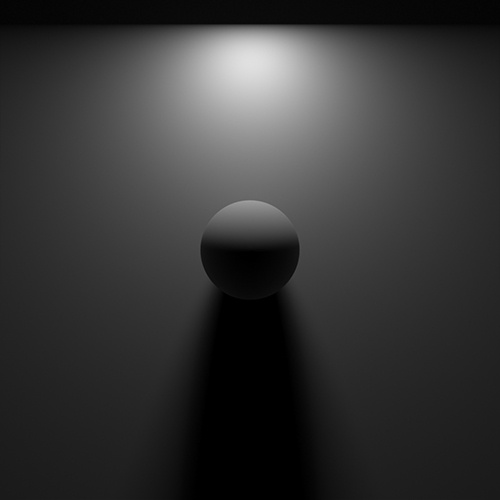

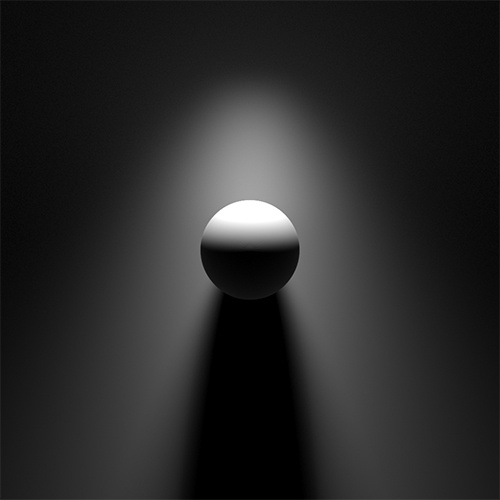

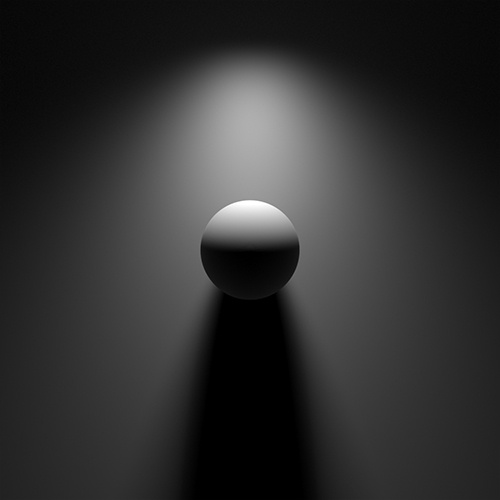

1 (default) | 0.3 | 0.2 |
The animation below shows the effect when lowering the Spread value.
Spread value lowered from 1 (quad light)
