The bump mapping attribute accepts a shader that perturbs the normal for bump mapping.

Normal Mapping

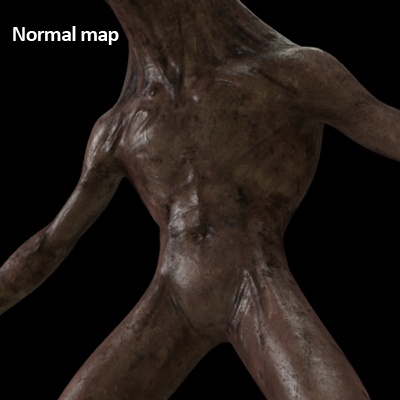

Normal mapping works by replacing the interpolated surface normal by the one evaluated from an RGB texture, where each channel (Red, Green, Blue) represents an axis and strength for the bump. It can be faster than bump mapping since bump mapping requires evaluating the shader underneath three or more times.

When using Color Management in Maya (2017), normal maps should be set to RAW.

In the example below a normal map is connected to a Maya bump2d node which is connected to the bump mapping attribute of a standard_surface shader.

Note that adjusting the Bump Depth attribute will have no effect on the normal map.

_{Normal map connected to a Maya 'bump 2d' node. 2d Bump set to 'Tangent Space Normals}

FlipR

The FlipR button will flip the Red Channel of the Normal Map.

_FlipR

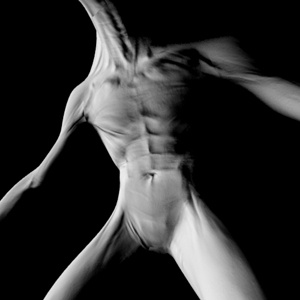

The FlipG button will flip the Green Channel of the Normal Map.

_FlipG

Swap Tangents

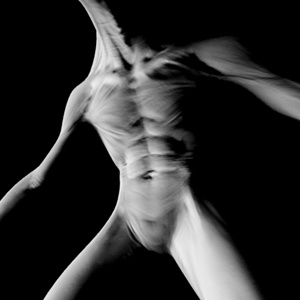

The Swap Tangents will switch the Red and Green channels of the selected Normal Map.

_{Swap Tangents}

Use Derivatives

Enables the use of derivative normal maps. If you disable 'Use Derivatives' when using tangent-space normal mapping, the bump shader uses the tangent and bitangent data stored on the mesh. Otherwise (by default), the bump shader will use the UV surface derivatives from the Arnold shading globals.

Gamma Correct

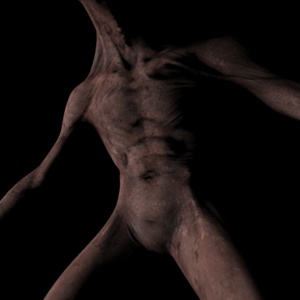

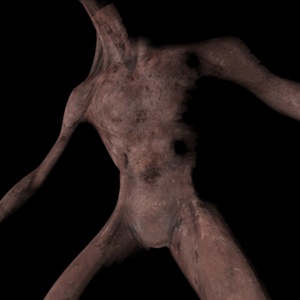

Applies a gamma correction to the normal map. This will 'undo' any automatic gamma correction applied due to the texture gamma settings .

_{Gamma Correct}
