Edge

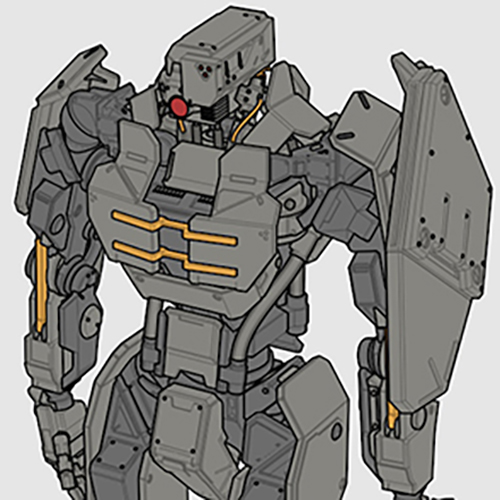

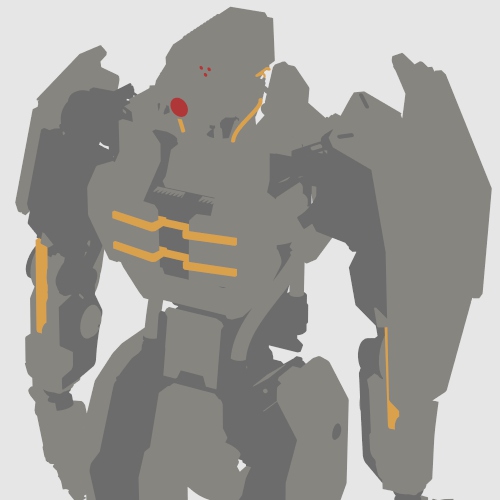

When turned off, the edge detection is disabled (enabled by default).

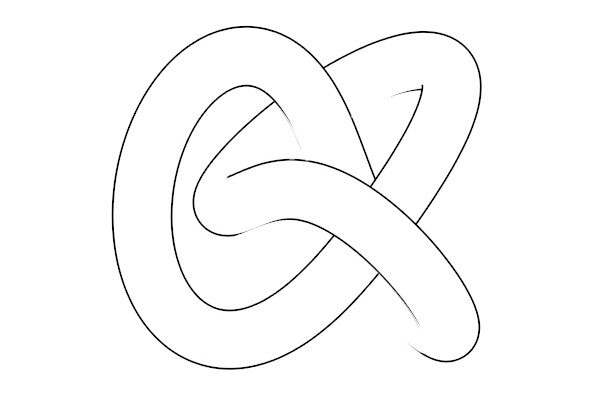

Edge Color

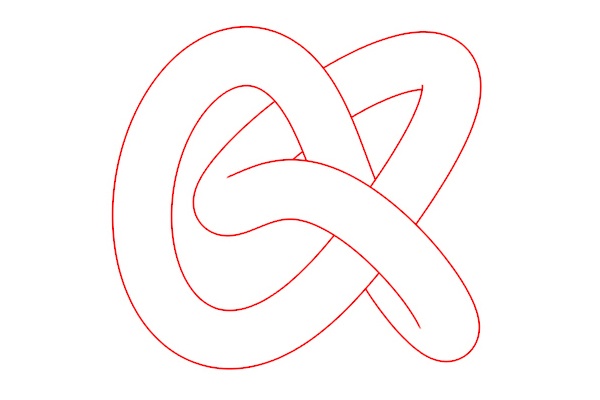

The color of the toon edge. The line style can be controlled with a texture here.

Edge Tonemap

Connect a ramp node here to change the Edge Color based on the shading result of the base.

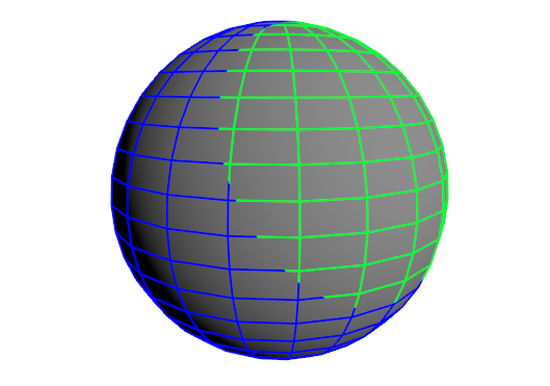

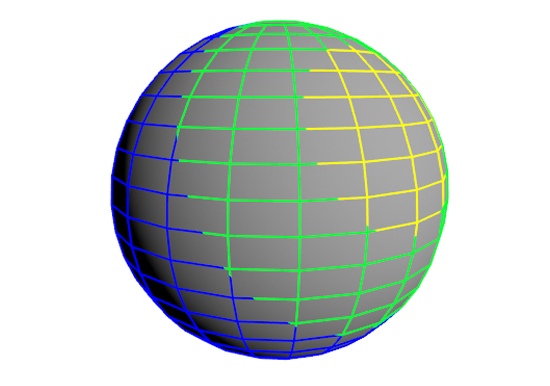

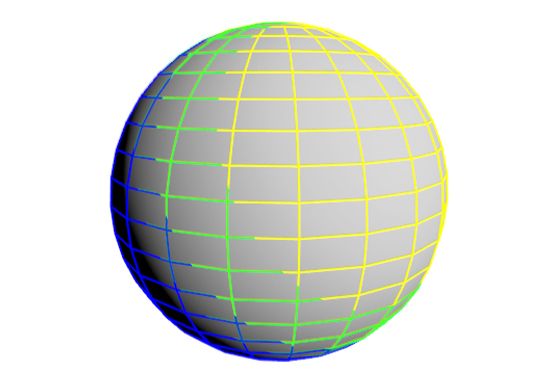

The direct diffuse shading contribution is mapped into the UVs. So in the example below, the back of the sphere (which has the darkest direct diffuse) is blue and the part of the sphere hit directly by the Distant Light is green. This then becomes yellow as the exposure of the lighting is increased.

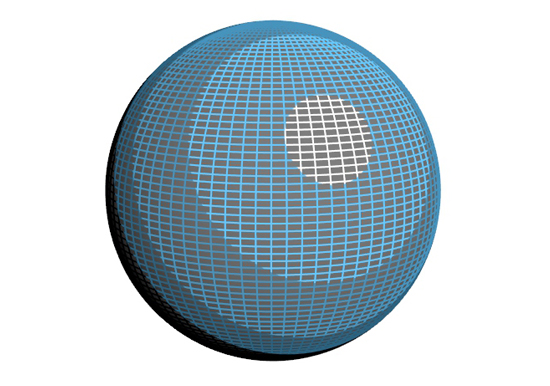

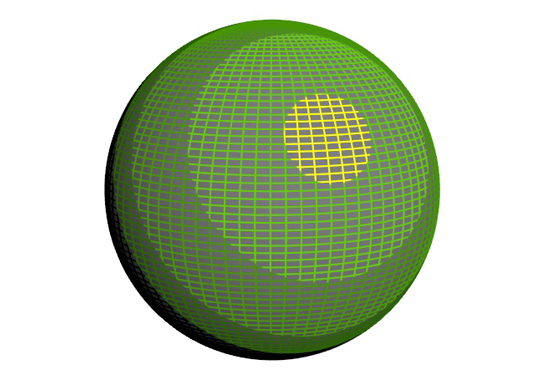

In the example below, the Edge Color (yellow) is multiplied by the blue ramp color (connected to Edge Tonemap) to give green.

Tonemap Hue Saturation

When the hue and saturation tonemaps are used in conjunction with the pre-existing tonemap, the pre-existing tonemap parameter will only be used for the value (a sort of brightness) in the direct light of the HSV mapping, whereas without it would produce full RGB colors mapped to the value of direct light. This allows for the full set of HSV components to be mapped independently through these two shader parameters.

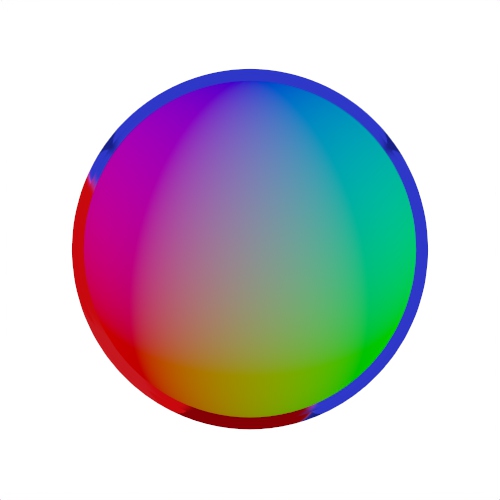

The connected shader's U coordinate drives direct light hue and the V coordinate drives saturation, which enables textures to map the toon shader's response to colored lighting.

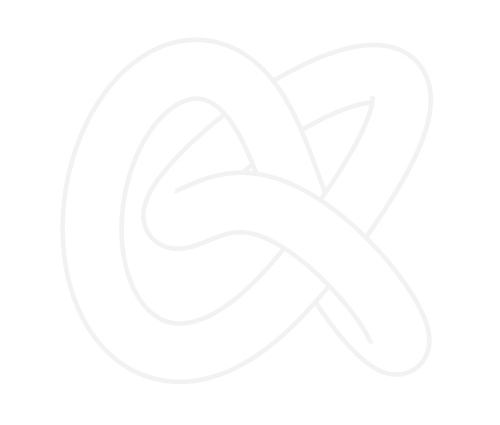

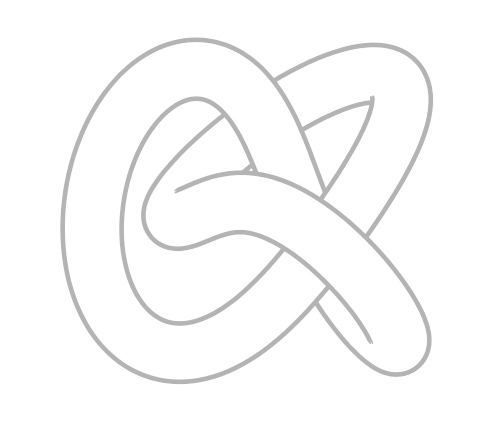

Edge Opacity

Controls the transparency of the Edge.

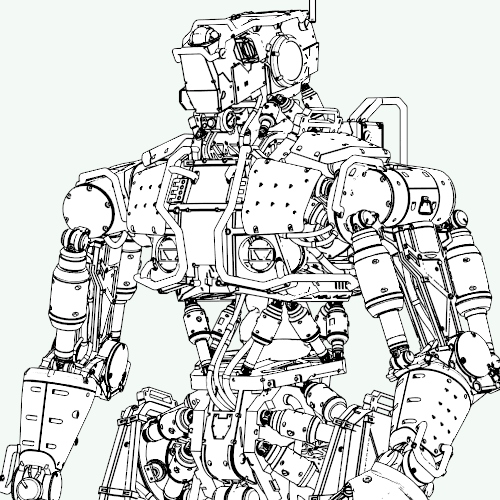

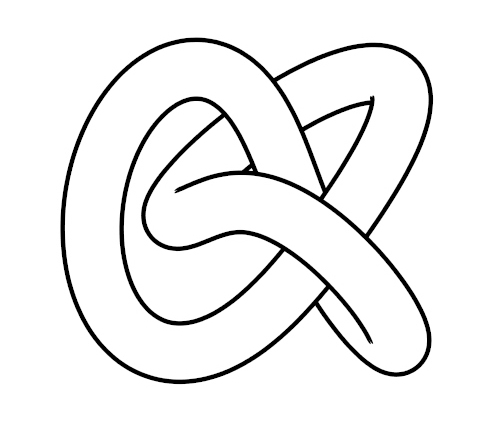

Width Scaling

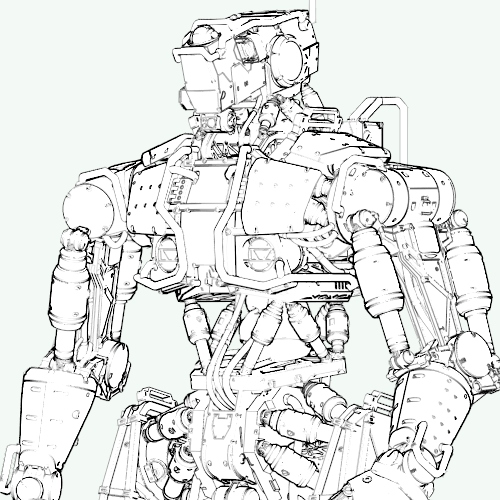

The maximum width of the Contour lines is determined by the Width parameter of the Contour Filter. The actual width is the multiplication of it and this parameter. The line style can be controlled by combining this with a texture.

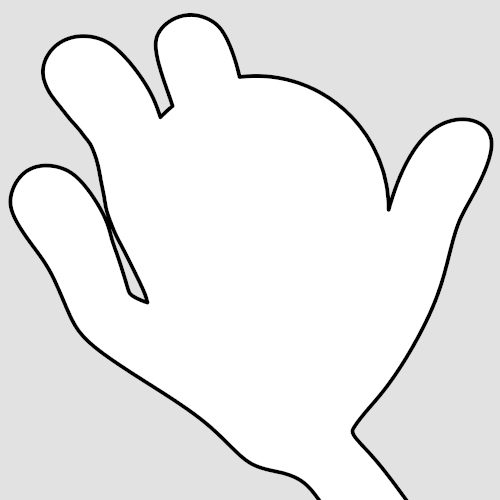

ID Difference

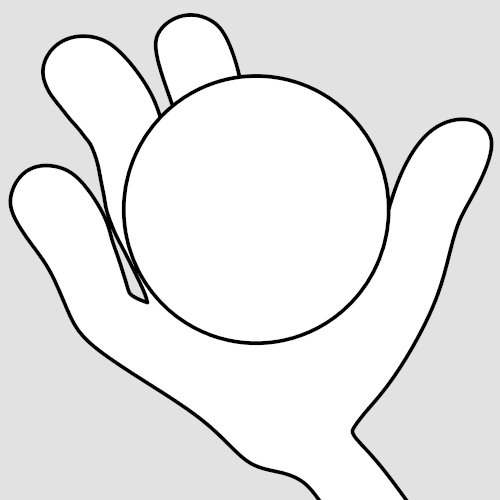

If enabled, edge detection uses the difference of IDs from neighboring pixels.

Curve, Point, and Shape IDs

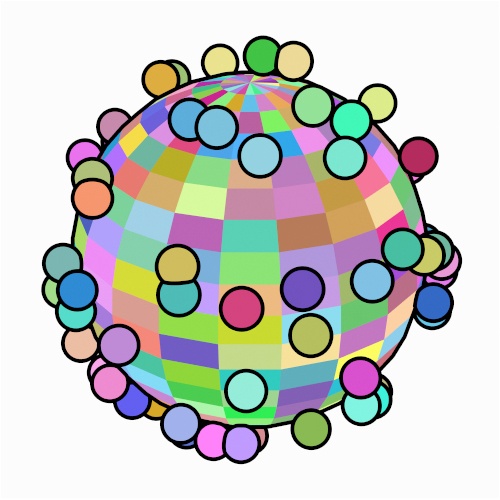

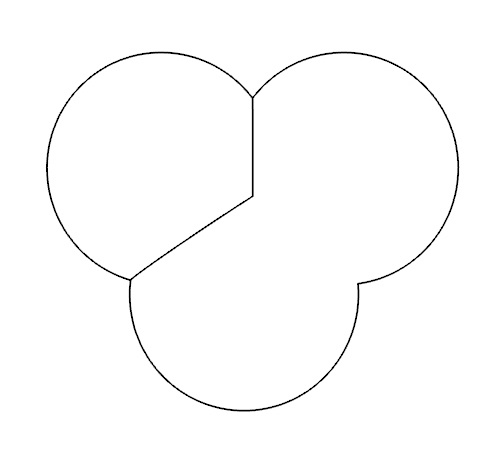

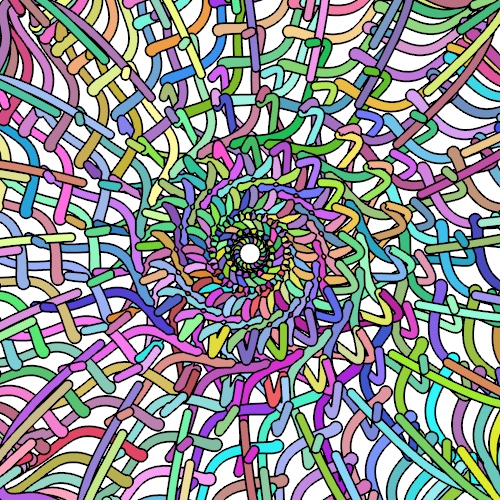

Id Difference draws edges on curves, points, and shapes. Points also have a different ID for each point. A sphere is covered in particles (as spheres) that use the same Toon shader. Emission Color = Utility shader with Color = Uniform ID (the ID used by the toon shader). The particles have edges because each sphere is a point with a different ID. The large sphere is a shape, so the Toon shader uses the name as the ID (otherwise every primitive e.g. polygon would have an edge). For curves, every curve has a different ID, so ID Difference enabled vs disabled would look like the images below.**

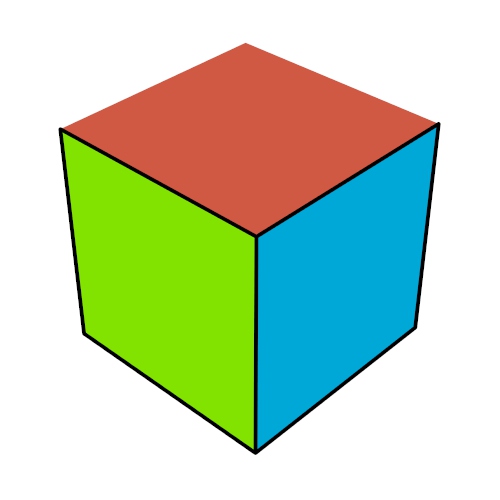

Shader Difference

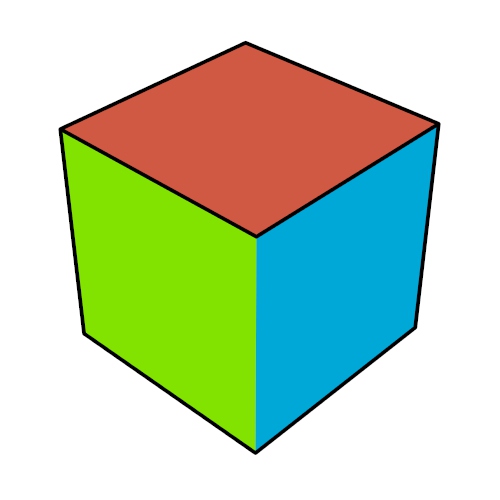

Detects the difference of the shaders of neighboring samples. This is useful when multiple shaders are assigned to a single polymesh, for example.

Mask Color

The edge is detected when the mask color of neighboring pixels is different. The Mask Color is assumed to have a texture connected to draw an arbitrary shape by detecting color differences. With this parameter, lines can be drawn anywhere (the filter draws lines where the color of the mask changes).

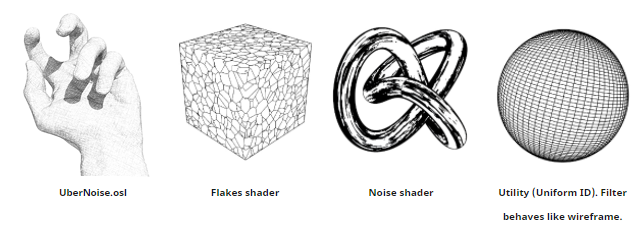

_{Stylistic effects achieved by connecting different shaders to Mask Color}

The Shade Modes of the Utility shader can be used to add more detail to the edge when connected to Mask Color.

_{Utility shader -> Mask Color}

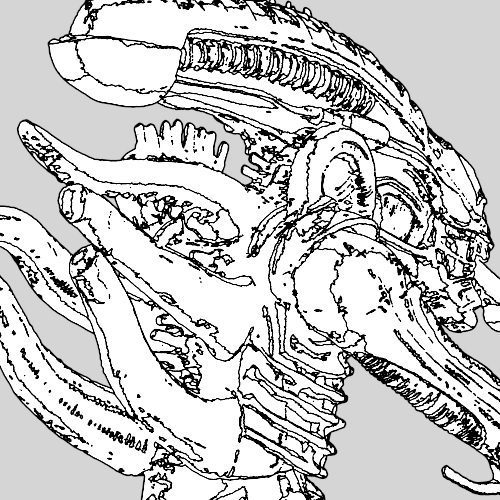

UV Threshold

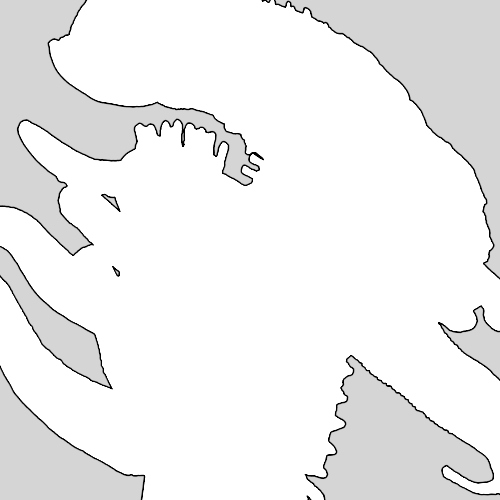

If enabled, edge detection uses the difference of UVs from neighboring pixels.

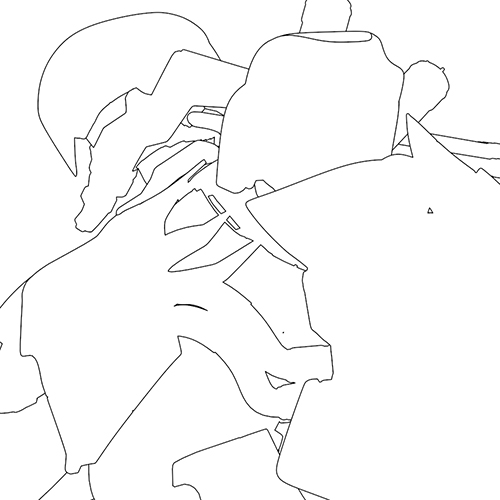

Angle Threshold

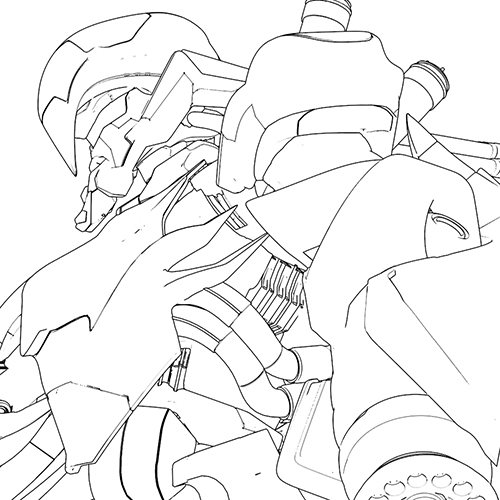

When less than 180, the edge detection uses the difference of the angle between neighboring pixels.

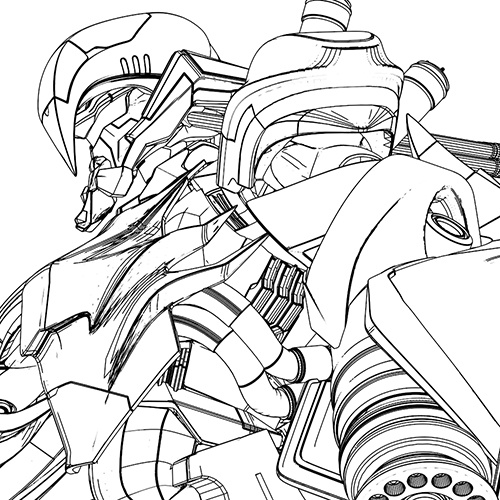

_{Angle Threshold keyframed from 180 to 10}

Edge Detection

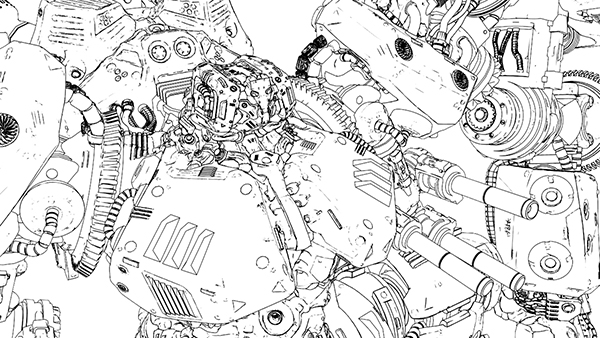

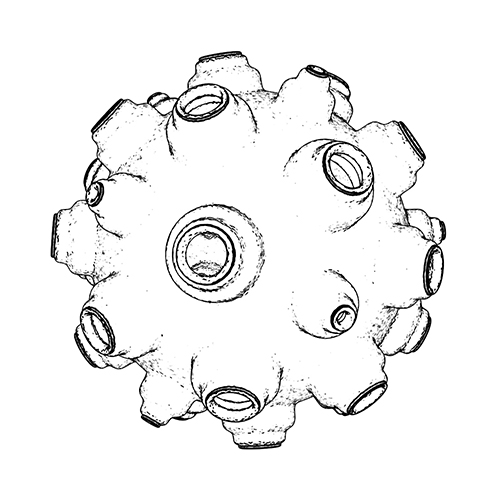

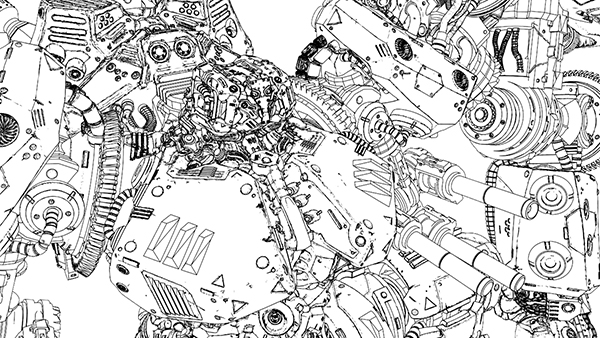

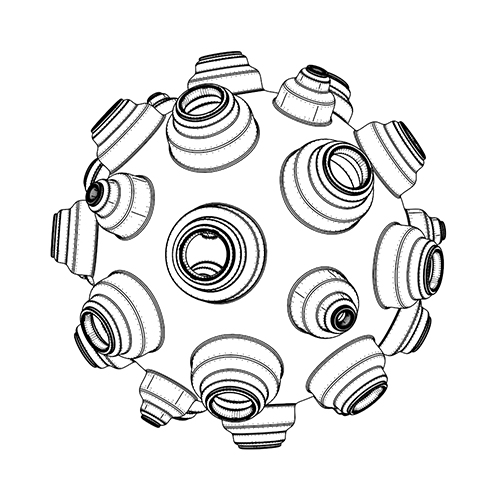

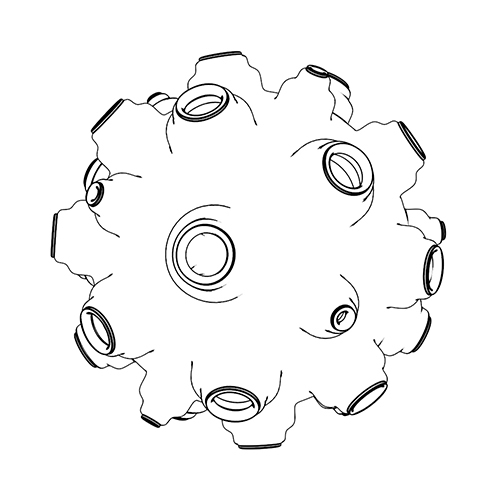

The normal used in the edge detection. Choose from: Shading Normal, Smoothed Normal, and Geometric Normal.

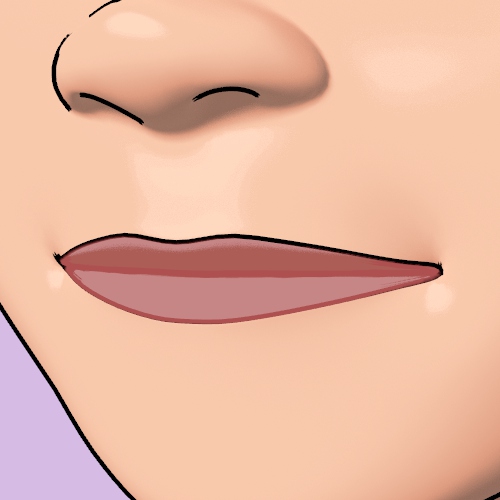

[Priority

Changes the sorting priority of the edge.

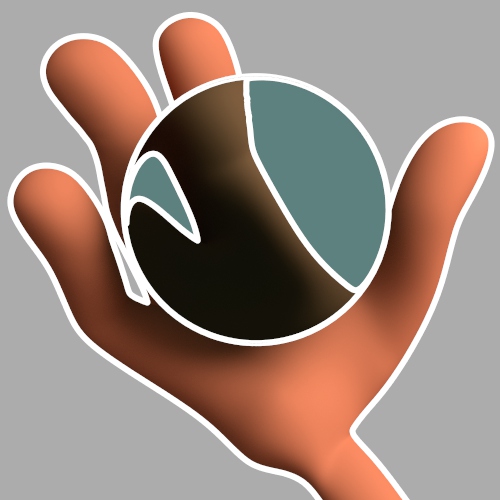

Ignore Throughput

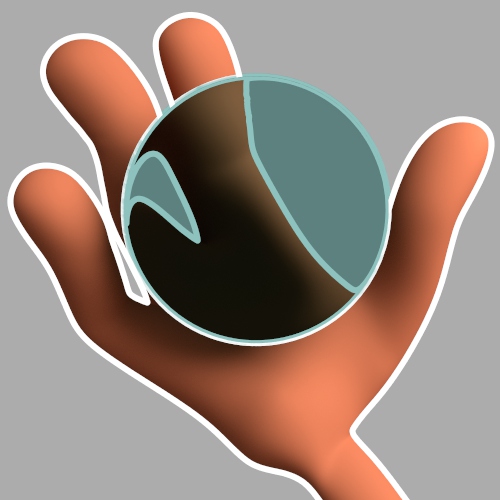

By default, the contour color is affected by ray throughput. If a specific color is required for a reflected/refracted object, enable this and use a Ray Switch Shader.

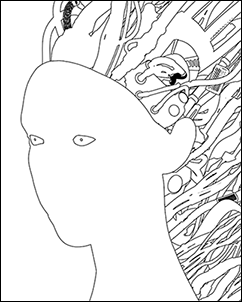

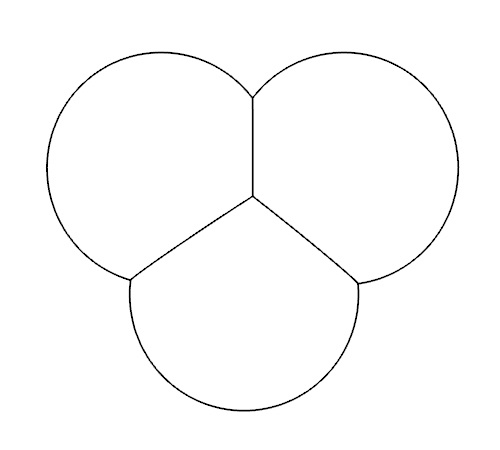

Use Toon ID

Edge detection can be controlled using a STRING type user data called toon_id. Otherwise, the detected edges will be driven by the object's own name as a toon-specific ID. This allows for grouping of objects, where Toon ID specifies which objects belong together regarding edge detection.

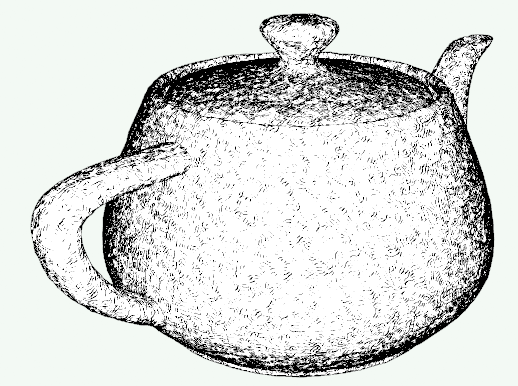

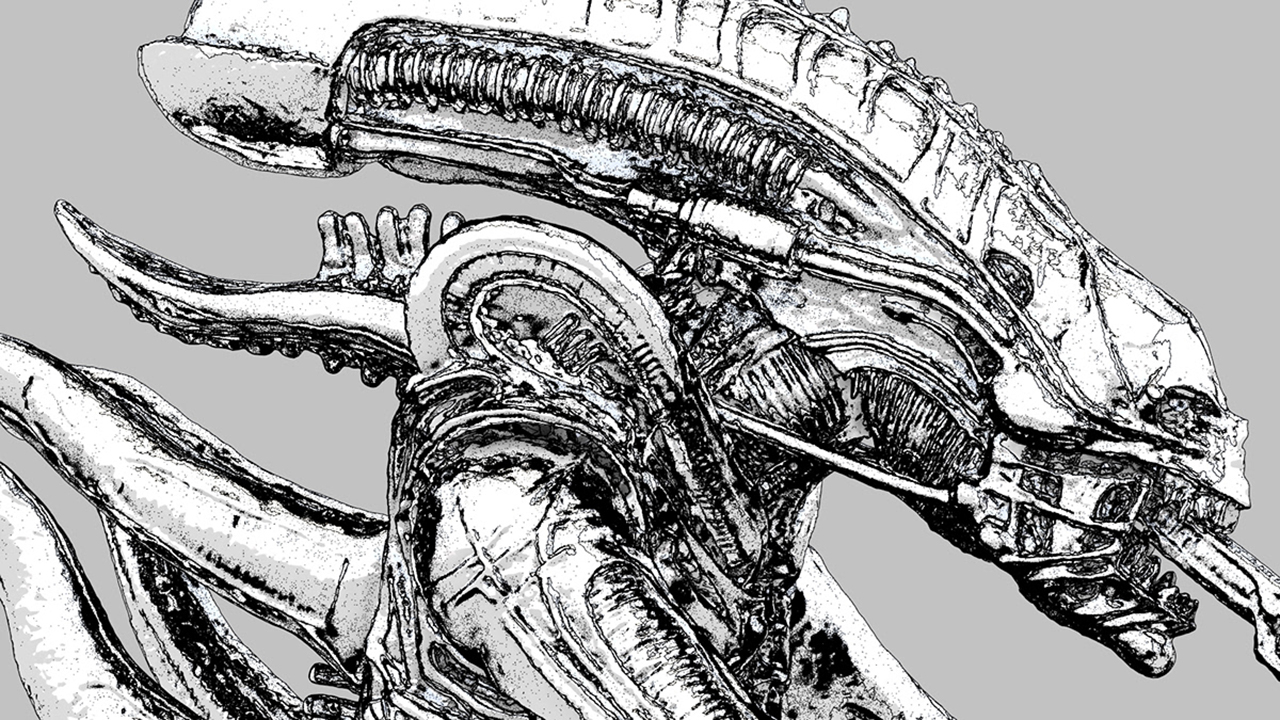

Cross Hatching

Displacing the surface with a texture can help to create a crosshatch effect with Toon Edge shading.

_{Teapot displaced with Noise shader}

^{_{Pepe model by Daniel M. Lara (Pepeland).}}
