Create New Views

When you create a new view in Assemble, you can use it to update an existing view or you can save it as a new view.

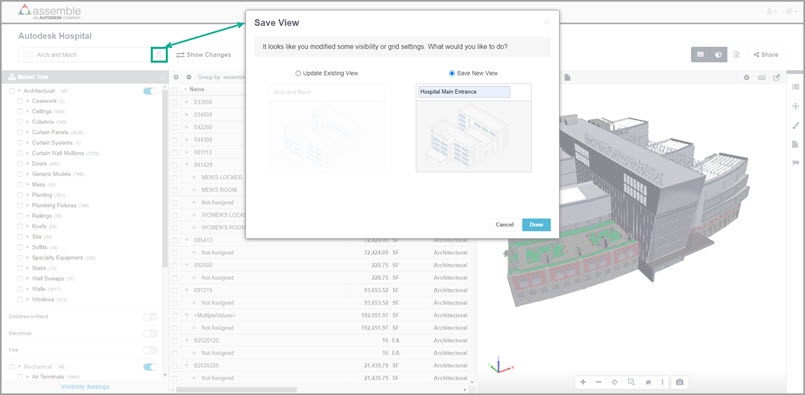

To create a new view,

  1. From the Assemble Dashboard, select a model card.

    The Project page of the model you selected opens.

  2. Select img.

  3. Create a new view by selecting specific data from the Model Tree, Inventory Panel, Model Viewer, Visibility Rules and/or Color Coding tool. Review each section below for further details.

  4. Do one of the following:

    • Select Update Existing View. Select Done.
    • Saved New View. Enter a name for the new view. Select Done.

Modify a View with Groups

Groups organize and display model properties in an expandable/collapsible hierarchy. You can choose to nest multiple properties within a group and save them to a view. Any of the available properties in a model may be used to group the data in the grid. Learn more about creating groups of model data.

Change your Inventory Grouping

  1. Select img, located directly above the Inventory.
  2. Select a group name or Create a new grouping order.

    Modify a View with Columns

Use the Add/Remove Columns function to select columns for display in the Inventory.

Add Columns to the Inventory

  1. Select Add/Remove Columns in the top-right corner of the Assemble Grid, or click C on your keyboard.
  2. To add a column, select a column name in the Available columns list.
  3. Define the order of the columns by dragging and dropping the blue items to your desired order location.
  4. Select Apply.

Sort data with Columns

Select a column heading to sort the data by that column. The arrow next to the column heading indicates whether the data is sorted in ascending or descending order.

Remove a Column

  1. Select Add/Remove Columns in the top-right corner of the Assemble Grid, or click C on your keyboard.
  2. To remove a column, select x next to the property.
  3. Select Apply.

    Use the Model Tree and Visibility Rules to Modify a View

The Model Tree lets you create views of datasets by using category family or type names to filter the objects. Learn more about the Visibility Settings.

The Visibility Settings panel provides greater flexibility and specificity in creating views. Use the Rules in the Visibility Settings panel to change visibility of objects in the view based on user defined properties that are not available in the Model Tree. Rules can be added and edited for every model in the Project.
