Import Custom Assembly Codes into Revit 2015-2016

Revit 2015 offers a simple tool, from within the Revit interface, to import a custom assembly code file. Now, assembly code trees utilized in Assemble can be exported from Assemble and imported into Revit in a few quick and easy steps, allowing undeviating assembly descriptions of your model elements.

Assembly code files imported into Revit are model-specific when using Revit's new Assembly Codes Settings tool, and will not affect all models opened in Revit.

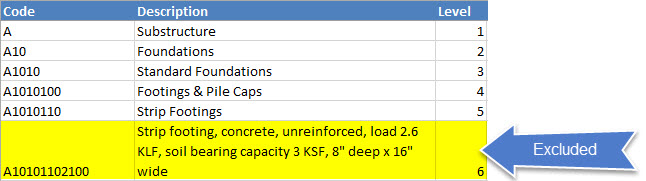

Note: Revit's Assembly Codes Settings tool will ignore codes beyond Level 5.


To export an assembly code file from Assemble

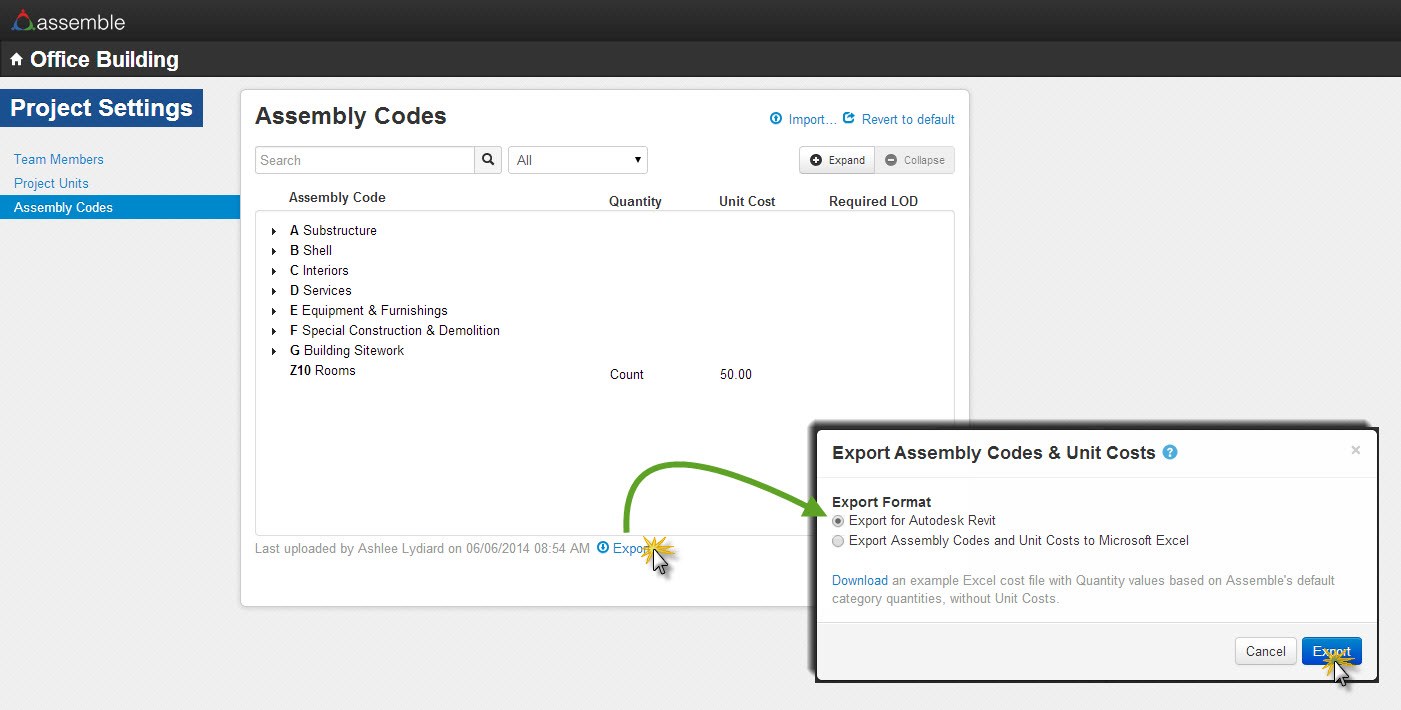

  1. Open the Assembly Codes window by selecting Project Settings in the navigation bar or the Manage link from the project dashboard.

  2. Select the Assembly Codes link in the resulting pane.

  3. At the bottom of the Assembly Codes window, click the blue Export link.

  4. Select the option to Export for Autodesk Revit, and then click Export.


To import an assembly code file into Revit 2015

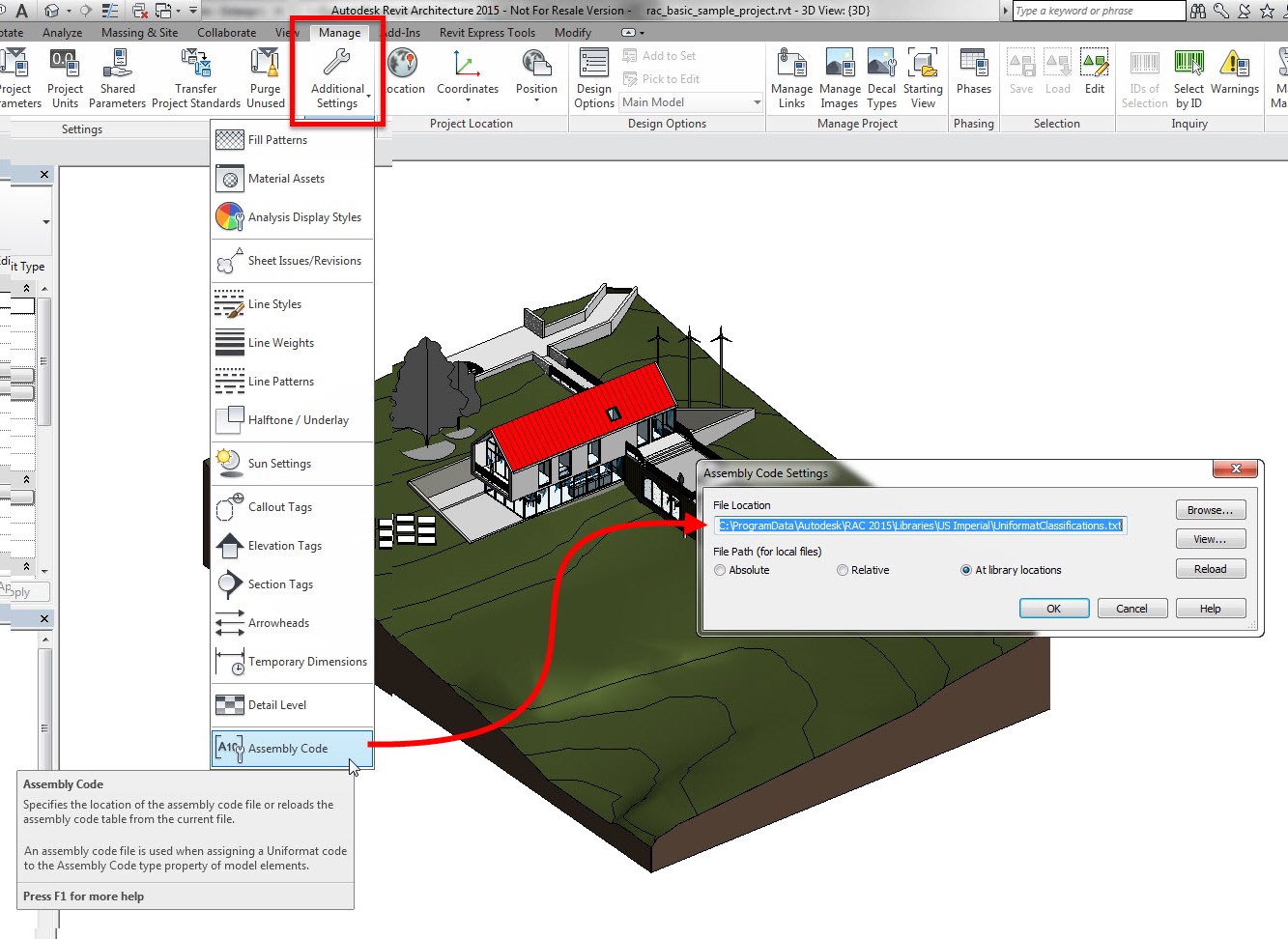

  1. Under the Manage tab, from the Settings panel, select the Additional Settings tool.

  2. Select the Assembly Code option.

  3. In the Assembly Code Settings dialogue window, click Browse to locate and import your TXT file.

  4. Click OK to save the new file to your model.
