Transmittals Settings

• Access Transmittal Settings
• Attribute Groups
  • Attribute group limitations
  • How to Create an Attribute Group
  • Edit or Delete an Attribute Group
  • Recipients viewing attributes
  • Advanced settings
    • Transmit files to anyone

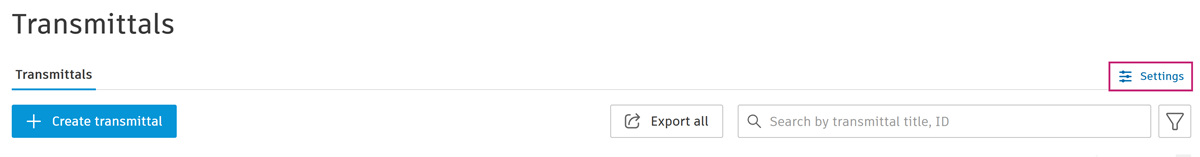

Access Transmittal Settings

1. Click the Transmittal tool.

2. Click Settings.



Attribute Groups

Project administrators can create groups of attributes for transmittals. When a member creates a transmittal, they can select an attribute group to easily add attributes to the transmittal in addition to attributes added by default (Name, Description, Path, Version, Review status, Last updated, and Updated by). The creator can also preview the selected attribute values when creating the transmittal. These attributes also appear in the transmittal detail view and reports.

Only project administrator can create attribute groups, edit attribute groups, delete attribute groups. All project members can view and select attribute groups when creating transmittals.

Attribute group limitations

• Maximum 50 attribute groups per project
• Maximum 10 attributes per group (excluding default attributes)
• Maximum 255 characters per attribute group name
• Special characters are not allowed in group names: `< > : " / \ | ? * ``
• Duplicate group names are not permitted

How to Create an Attribute Group

1. Click Transmittals

2. Click Settings

3. Click Attribute groups

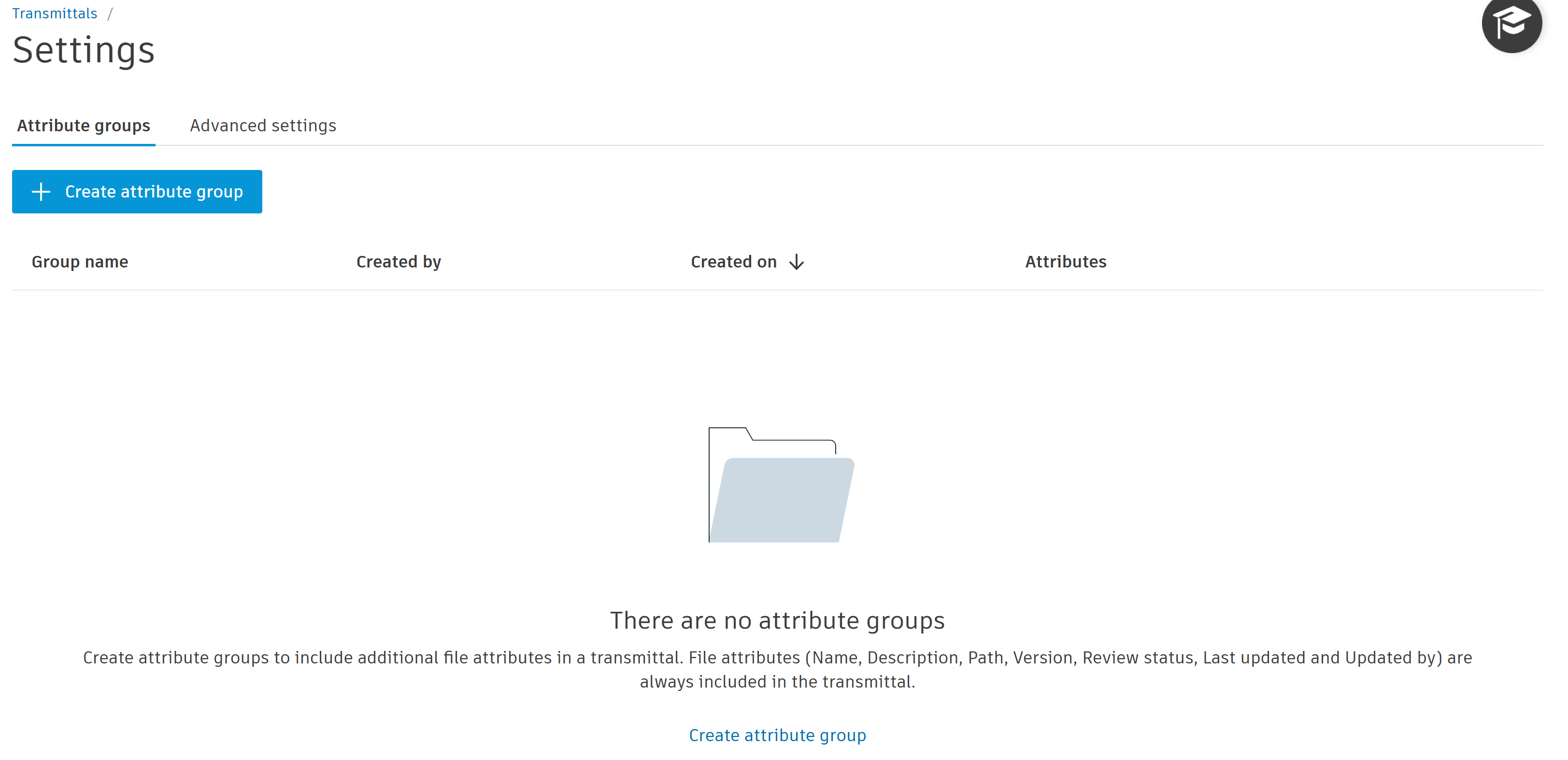

   No attribute groups will be listed if there aren't any created yet.



4. Click Create attribute group

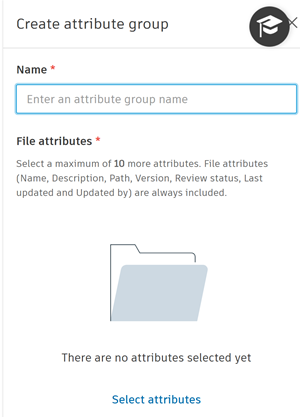

   This opens the Create attribute group panel.



5. Name: Enter a unique name for your attribute group

6. File attributes: Click Select attributes and choose a maximum of 10 system and custom attributes in the select attribute dialog.

7. Click Select.

8. Review your selected attributes in the preview area

9. Click Create.

Edit or Delete an Attribute Group

Edit an attribute group

1. Click the more menu of the relevant attribute group.

2. Select Edit.

3. Make your changes:

   • Update the group name if necessary.

   • Add or remove attributes using Select attributes.

     Note: If an attribute is deleted from Files Settings, it appears grayed out with a warning icon. Remove deleted attributes before saving.

4. Click Save.

Delete an attribute group

1. Click the more menu of the relevant attribute group.

2. Select Delete.

   Note: Deleting an attribute group does not affect the individual attributes themselves.

Recipients viewing attributes

• Member recipients: View all attributes (including Path, Last updated, Updated by)
• Non-member recipients: View all attributes except Path, Last updated, and Updated by Recipients can control column visibility using the gear icon Attribute values are captured at transmittal creation time and don't change if updated later

Advanced settings

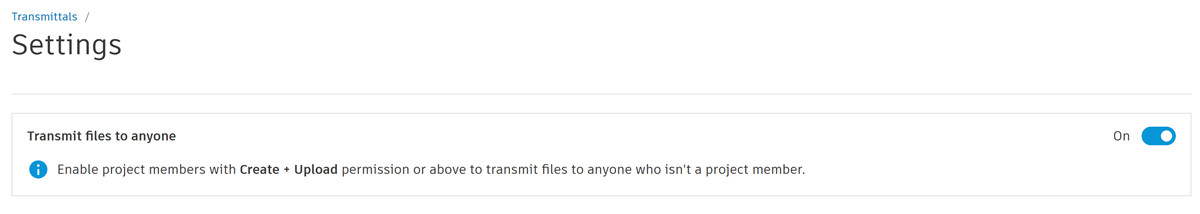

Transmit files to anyone

By default, members can only create and send transmittals to other project members.

Project administrators can choose to allow project members with Create + Upload permission or above to also transmit files to anyone who isn't a project member.

Click the toggle to turn on Transmit files to anyone.

The option to send transmittals to non-members will now be available when members create transmittals.
