ShoulderRoundedTarget

The ShoulderRoundedTarget subassembly provides rounding of a shoulder.

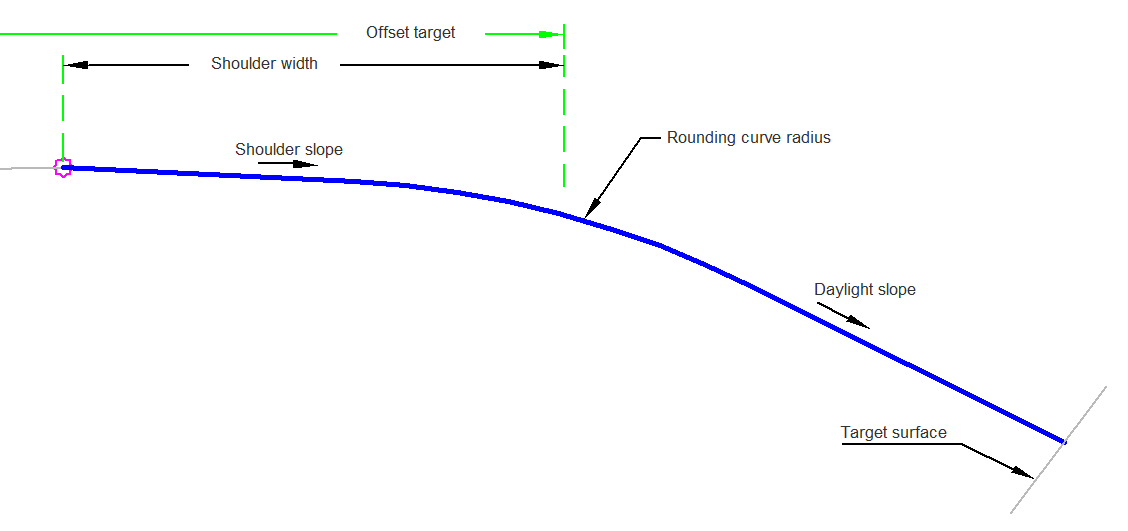

The shoulder is measured from the attachment point to the PVI of the rounding. If the distance between the PVI and the target surface is not adequate to provide the rounding curve, the rounding curve value is reduced to fit. You can define the geometry of the rounded shoulder.

Attachment

The attachment point is at the inside edge of the paved shoulder, which is typically at the outside edge-of-traveled way.

Input Parameters

Note: All dimensions are in meters or feet unless otherwise noted. All slopes are in run-over-rise form (for example, 4 : 1) unless indicated as a percent slope with a “%” sign.

Parameter	Description	Type	Default
Side	Specifies which side to place the subassembly.	Left/Right	Right
Shoulder Slope	Slope of the shoulder.	Numeric	-5 ( % )
Daylight Slope	The slope for the daylight slope.	Numeric, positive	2 (: 1)
Rounding Curve	Specifies value for length.	Numeric, positive	2.5 ft 0.75 m
Shoulder Width	Width from the attachment point to the shoulder hinge point.	Numeric, positive	5 ft 1.5 m

Target Parameters

This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.

Parameter	Description	Status
Daylight Surface	Name of the daylighting surface. The following object types can be used as targets for specifying the surface: surfaces.	Optional
Offset Target	May be used to override the shoulder width and tie the shoulder width to an offset alignment. The following object types can be used as targets for specifying the offset: alignments, polylines, feature lines, or survey figures.	Optional

Runtime Logical Assignments

None.

Output Parameters

None.

Behavior

The PVI location of the rounded curve is calculated by using the input parameters or, if set, the Offset Target. A temporary daylight link is then calculated. Then the curve is calculated and the remaining points and links are added to the subassembly.

Layout Mode Operation

In layout mode the subassembly displays the links comprising the shoulder.

Point, Link, and Shape Codes

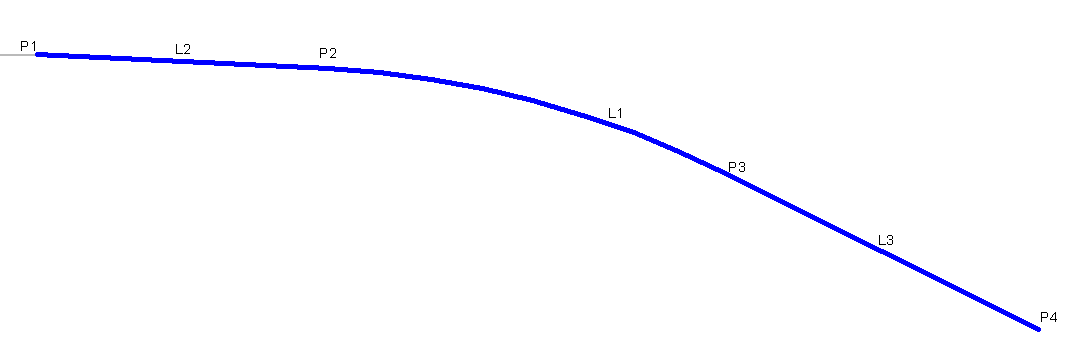

The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.

Point, Link, or Shape	Code	Description
P1	Top, Hinge
P4	Daylight, Top
L1 - L3	Top
