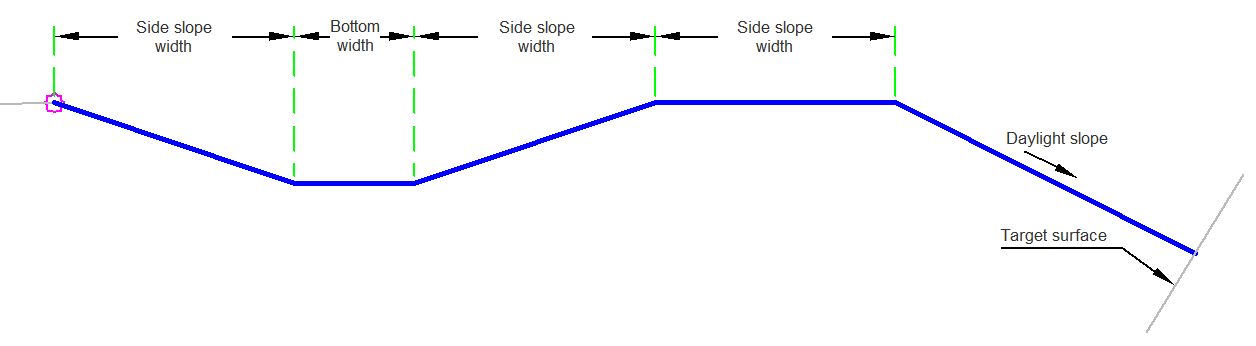

The DitchWithBermInFill subassembly places a ditch with predefined geometry and creates a berm in fill and cut conditions.
The slope of the berm is also predefined and the link that is created extends until it finds a surface target.
Attachment
The attachment point is at the inside edge of the first link.
Input Parameters
|
Parameter |
Description |
Type |
Default |
|---|---|---|---|
|
Side |
Specifies which side to place the subassembly. |
Left/Right |
Right |
|
Side Slope |
Ditch side slope. |
Numeric, positive |
3 (: 1) |
|
Daylight Slope |
The slope of the daylight link. |
Numeric, positive |
2 (: 1) |
|
Bottom Width |
Width of the bottom of the ditch. |
Numeric, positive |
2 ft 0.60 m |
|
Side Slope Width |
Width of the side slope. |
Numeric, positive |
4 ft 1.20 m |
Target Parameters
This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.
|
Parameter |
Description |
Status |
|---|---|---|
|
Daylight Surface |
Name of the daylighting surface. The following object types can be used as targets for specifying the surface: surfaces. |
Required |
Runtime Logical Assignments
None.
Output Parameters
None.
Behavior
The subassembly builds the shape for a ditch using the input parameters. Once the ditch shape is built the ditch is determined to be in cut or fill. If in cut, a daylight link is added using the daylight slope. If in fill, a berm is created using the side slope width.
Layout Mode Operation
In layout mode the subassembly displays the links comprising the ditch in the fill condition.
Point, Link, and Shape Codes
The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.
|
Point, Link, or Shape |
Code |
Description |
|---|---|---|
| P1 | Hinge, Top | Attachment point, ditch start |
| P2 | Top, Ditch_In | Bottom of ditch nearest to attachment point |
| P3 | Top, Ditch_Out | Bottom of ditch farthest from attachment point |
| P4 - P5 | Top | |
| P6 | Daylight | Daylight point |
| L1 | Top, Ditch_In | |
| L2 | Top, Ditch_Bottom | |
| L3 | Top, Ditch_Out | |
| L4 - L5 | Top |

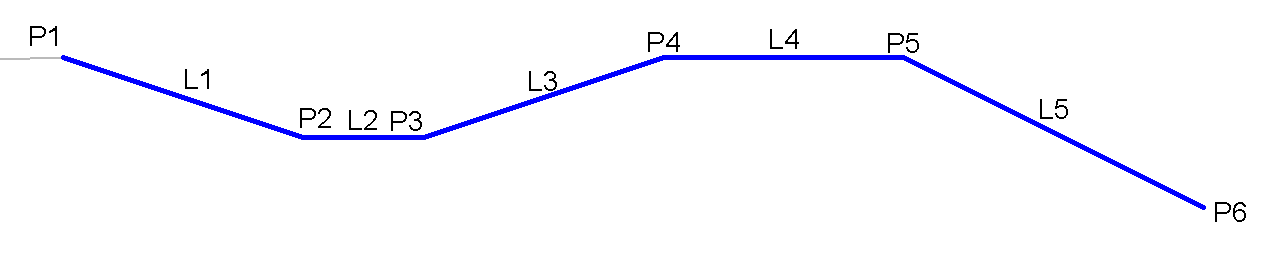

Coding Diagram
