ClarkCountyExtrudedCurb

The ClarkCountyExtrudedCurb subassembly inserts links to create a Clark County Extruded Curb.

You should verify that the dimensions used match your interpretation of the standard plan.

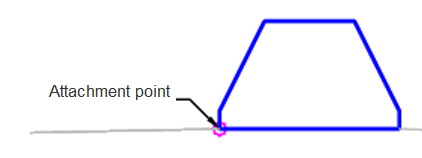

Case 1: Type 1

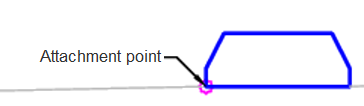

Case 1: Type 2

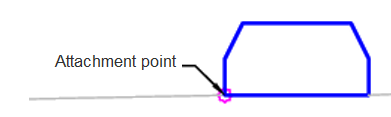

Case 1: Type 3

Attachment

The attachment point is on the front edge of the curb.

Input Parameters

Note: All dimensions are in meters or feet unless otherwise noted. All slopes are in run-over-rise form (for example, 4 : 1) unless indicated as a percent slope with a “%” sign.

Parameter	Description	Type	Default
Side	Specifies which side to place the subassembly	Left / Right	Right
Curb Type	Curb type to use	Type 1 / Type 2 / Type 3	Type 3

Target Parameters

This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.

Runtime Logical Assignments

None.

Output Parameters

None.

Behavior

The subassembly builds a Clark County Extruded Curb based on the type selected.

Layout Mode Operation

In layout mode, this subassembly draws the curb shape as specified by the input parameters.

Point, Link, and Shape Codes

The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.

Point, Link, or Shape	Code	Description
P3	ExtrCRB_Top_In	Top inside of the extruded curb
P4	ExtrCRB_Top_Out	Top outside of the extruded curb
L1-L5	ExtrCurb	Extruded curb
L6	ExtrCurb, Datum	Bottom of extruded curb
S1	Extr_Curb	Extruded curb concrete
