This subassembly creates a simple lane.

Attachment
The attachment point is at the inside edge of lane on finish grade.
Input Parameters
Note: All dimensions are in meters or feet unless otherwise noted. All slopes are in run-over-rise form (for example, 4 : 1) unless indicated as a percent slope with a “%” sign.
Parameter |
Description |
Type |
Default |
---|---|---|---|
Side |
Specifies which side to place the subassembly |
Left / Right |
Right |
Width |
Width of the lane |
Numeric, positive |
3.6 m 12.0 ft |
Depth |
Depth from finish grade to subbase |
Numeric, positive |
0.2 m 0.67 ft |
%Slope |
% Slope of the lane |
Numeric |
-2% |
Target Parameters
This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.
Target Parameters: None.
Output Parameters
Parameter |
Description |
Type |
---|---|---|
Side | Specifies which side to place the subassembly |
Left / Right |
Width |
Width of the lane |
Numeric, positive |
Depth |
Depth from finish grade to subbase |
Numeric, positive |
%Slope |
% Slope of the lane |
Numeric |
Behavior

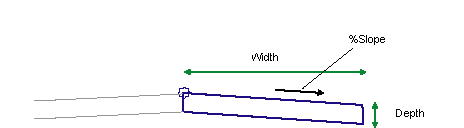

The subassembly builds a finish grade and subbase surface, closed by vertical links at either end. The lane is inserted outward from the attachment point for the given width, depth, and slope.
Layout Mode Operation
In layout mode, this subassembly draws the lane using the input parameters.
Point, Link, and Shape Codes
The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.
Point, Link, or Shape |
Codes |
Description |
---|---|---|
P1 |
Crown |
Crown of road on finish grade |
P2 |
ETW |
Edge-of-traveled-way on finish grade |
P3 |
Crown_Subbase |
Crown of road on subbase |
P4 |
ETW_Subbase |
Edge-of-traveled-way on subbase |
L1 |
Top, Pave |
Paved finish grade |
L3 |
Datum, SubBase |
Subbase |
S1 |
Pave1 |
|

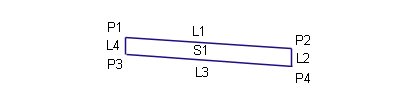

Coding Diagram
