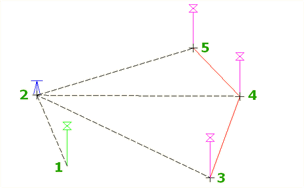

After defining the reference line, specify an angle and distance to the points that will define the line segment. From the reference line (1-2) and start point (2), specify points (3, 4, 5).
-
Click
Find.
- Specify a temporary reference line by doing one of the following:
- Select a line.
- Enter Points, or P, and then specify a start point and endpoint for the line.
The following prompt is displayed:
Specify angle or [Counter-clockwise/Bearing/Deflection/aZimuth]:
- Enter an angle by doing one of the following:
- Enter an angle in angular units for the drawing.
- Enter Bearing, or B, and then specify the angle by specifying a quadrant and a bearing.
- Enter Deflection, or D, then specify a deflection angle.
- Enter aZimuth, or Z, and then specify an azimuth.
- Enter C to switch the direction of the angle between clockwise and counterclockwise.
- Specify a distance by either clicking in the drawing or entering a distance.
- Continue to specify angles and distances to define line segments. Or presss Enter to return to the Line command prompt where you can use additional options to define the line.
