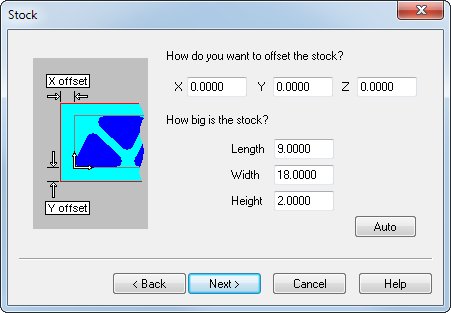

You can use the Stock dialog to specify the size and location of the stock:
- Enter the coordinates of the stock origin in the
X,
Y and
Z fields.
The default block size is calculated as the minimum block size that will contain all the parts in the document with the spacings specified in the Configuration dialog.
- If you want to use a stock with a specific size, enter the dimensions in the Length, Width, and Height fields.
- Click Auto to calculate the minimum block size that will contain all the parts.
- Click Next to display the Preview dialog. A preview of the layout is displayed in green in the graphics window.
