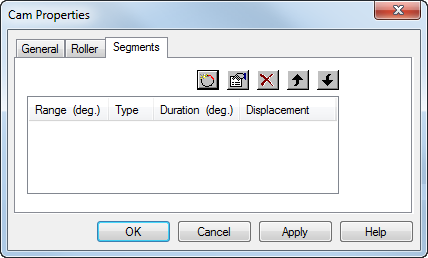

The Segments tab defines the cam segments and their specific parameters. The segment arcs are listed in counter-clockwise sequence.
- Create new entries by clicking
New
button. The
Edit Cam Segment dialog is displayed.
- To edit an entry, double-click the entry or select the entry and click the
Edit
button. The
Edit Cam Segment dialog is displayed.
- To delete a segment, select it in the table and click the
Delete
button.
- To change the segment order, select a segment and click the
Move Item Up
or
Move Item Down
button.
