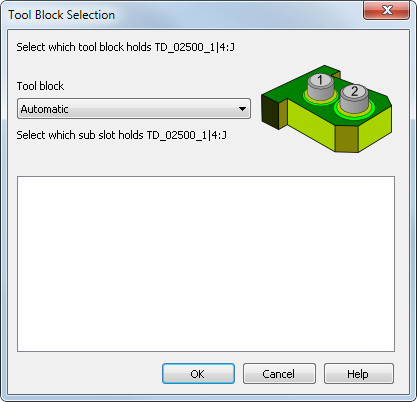

Use the Tool Block Selection dialog to specify which tool block holds a tool.
To specify which tool block holds a tool:
- In the Tool Mapping dialog, select a tool and click Select Block to display the Tool Block Selection dialog.
- In the Tool block list, select the tool block solid from the Machine Design file that you want to hold the selected tool.
- Select the sub slot in the list that you want to hold the tool.
- Click
OK to close the
Tool Block Selection dialog.

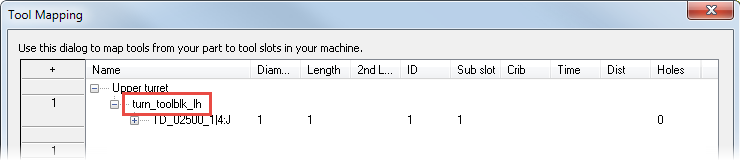

The tool block you selected is displayed in the tool mapping tree.
