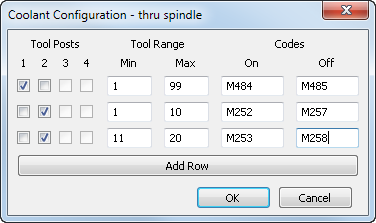

Use the Coolant Configuration dialog to specify different coolant on and off codes depending on the turret and tool being used.
To display the Coolant Configuration dialog, select Multi-code and click Configure in the Coolant dialog.
To use multi-code coolant:
- For each row, select the Tool Posts for which you want to specify the On and Off Codes.
- Enter the Tool Range, the range of tool numbers for which you want to specify the On and Off Codes.
- Enter the On and Off Codes.
- Click Add Row to add more rows if required.
- Click OK to close the dialog.
