Connector Class Dialog (What's New in 2026)
New Connector Class dialog for creating and editing asset connector classes.
The Connector Class dialog is designed to streamline your workflow and make the creation of connector classes easier than ever before. With this new dialog, you can now create, edit, and manage properties directly through a user-friendly interface. This eliminates the need to manually handle XML files.

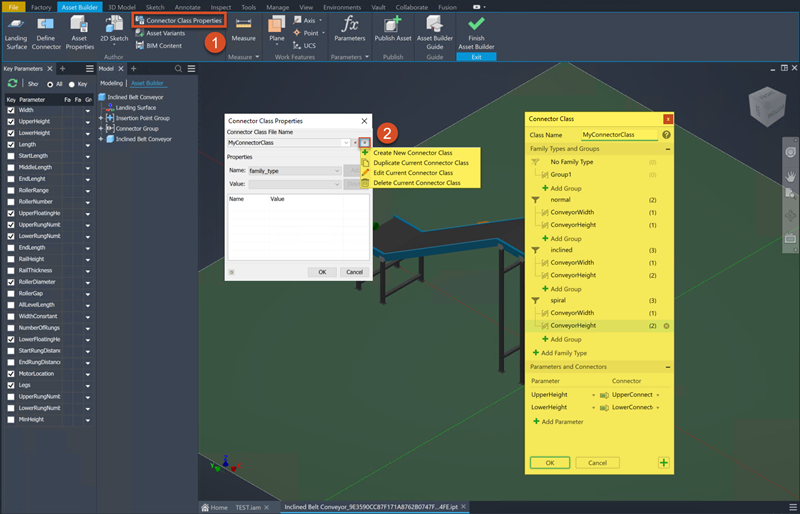

You can access it from the Connector Class Properties dialog:
On the Asset Builder tab, in the Author panel, click Connector Class Properties
.In the Connector Class Properties dialog, click Connector Class
.
Key Benefits
Simplified Workflow:
The Connector Class dialog provides an intuitive interface that simplifies the process of creating connector classes.
Ease of Use:
You can now quickly and easily define key parameters such as family_type, connector_name, and value_source without the need to manually edit XML files.
Enhanced Management:
The new dialog improves the management of connector class properties. It makes them accessible and easier to understand for everyone, regardless of their expertise.
Syntax Error Prevention:
The new dialog eliminates problems with incorrect syntax in the XML files. Its user-friendly design ensures that all properties are properly formatted, reducing errors and improving the overall reliability of your connector classes.
For more information, see Inventor - Custom Connector Classes.
