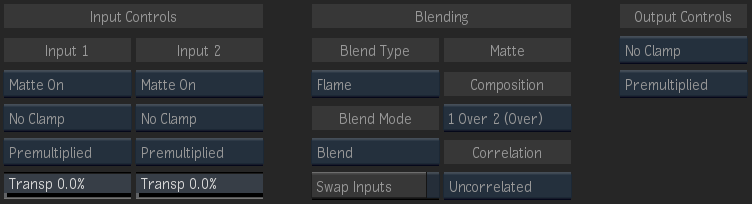

Comp Menu Settings

To see the full Comp menu, click the Editor button.

Input Settings

Note: Input Front and Input Back settings are identical.

Matte box

Select how the matte is used when blending.

Clamping box

Select a clamping option for colour and luminance values on input in the 16-bit floating point rendering pipeline.

Premultiplication box

Select whether the colour values in the input are premultiplied by the matte or not.

Transparency field

Displays the transparency value. Editable.

Blending Settings

Blend Type box

Select whether to use Flame or Photoshop blend modes.

Blend Mode box

Select how the front and back inputs are composited. The available list of modes depends on the selection in the Blend Type box.

Swap Inputs button

Enable to switch the rendering order of the inputs.

Blend Matte Settings

Composition box

Select how the input mattes are combined.

Correlation box

Select whether the mattes are related to each other. For example, select Correlated if the mattes are from different, but continuous parts on the same object.

Output Controls Settings

Clamp Render box

Select a clamping option for colour and luminance values on output in the 16-bit floating point rendering pipeline.

Pre-multiplication box

Select whether the colour values in the output are pre-multiplied or not.
