3D Geometry Menu Settings

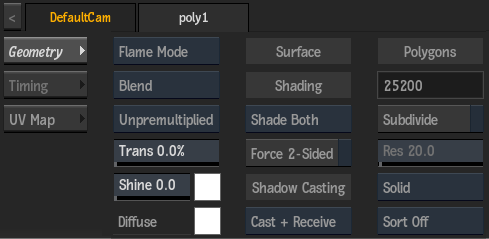

You can change and animate parameters such as the colour, specular highlight, shine, and transparency of 3D models. You set these parameters using the Geometry menu. To access this menu, double-click a Geometry node in the schematic, or follow the tab population rules for the Object menu (see Populating Menu Tabs of Selected Objects).
Blending Settings
Blend Type box
Select whether to use Flame or Photoshop blend modes.
Blend Mode box
Select how the 3D model and the scene are combined. The available list of modes depends on the selection in the Blend Type box.
Transparency field
Displays the transparency level of the 3D model. Editable.
Shine field
Displays the intensity value of the specular highlight. When this value is zero, the specular highlight is disabled. Shine affects both size and intensity. Editable.
See Creating a Specular Highlight on a Model.
Specular colour pot
Displays the colour of light reflected by the 3D model's surface. To enable the specular highlight, the Shine value must be larger than 0. Editable.
Diffuse colour pot
Displays the diffuse colour. Editable.
Surface Settings
Shade Order box
Select the drawing priority of the 3D model normals.
| Select: | To draw the polygons: |
|---|---|
| Shade Both | That are both facing and opposite the camera. |
| Shade Front | Facing the camera last. |
| Shade Back | Opposite the camera last. This option is especially useful for semi-transparent models |
Force 2-Sided button
Enable to have lights in the scene light both the inside and outside of the geometry (when shading is turned on).
Shadow Casting box
Select how the selected geometry object will be affected by a Shadow Cast object in the scene.
See Surface and Geometry Shadow Casters.
Polygons Settings
Polygons field
Displays the number of polygons in the 3D model. Non-editable.
Subdivide button
Enable to create high-quality shading for polygon models.
Resolution field
Displays the geometry resolution of the 3D model. Active when Subdivide is enabled. Editable.
Wireframe box
Select a wireframe option for the 3D model. When you render the 3D model with Wireframe or Original Wire selected, it retains its light, shading, and texture attributes.
| Select: | To: |
|---|---|
| Solid | Disable wireframe for the 3D model (filled polygons are drawn). |
| Wireframe | Display the model as a wireframe outline (triangular polygons only). |
| Original Wire | Display the model as a wireframe outline (original mesh; any polygon type). May be useful for imported geometries. |
Sort box
Select how the 3D models contained in the scene are drawn.
| Select: | To: |
|---|---|
| Sort Off | Not apply any sorting. |
| Sort All | Sort all objects according to the Z-order and the order of the object group (Material ID). |
| Sort Transparency | Give transparent objects lower priority than opaque parts, to solve transparency issues if the scene contains semi-transparent 3D models. |
Timing Settings
If the 3D model has animation, you can find settings in the Timing tab of the Geometry menu.
Animation Mode box
Select the animation mode to use for multiple 3D geometries imported into a single animated geometry node.
| Select: | To: |
|---|---|
| Loop | Play in a continuous loop. |
| Once | Play once. The 3D geometry is no longer displayed. |
| Last Still | Play once, and hold the last frame. |
| Timing | Animate according to the timing in the animation channel. |
Hold field
Displays the number of continuous frames for Loop, Once, or Last Still Animation modes. Editable.
Slip field
Displays the offset to the start point for Loop, Once, or Last Still Animation modes. Editable.
Timing Range option box
Select an option to determine how Frame Timing values outside the timing range of the animation are handled. Available when Timing is selected in the Animation Mode box.
| Select: | To: |
|---|---|
| Roll | Roll over the Frame Timing value. |
| Cut | (Geometry is not displayed.) |
| Round | Display the first or last geometry (with this option, you can select the first and the last geometry of your animation). |
Frame Timing field
Displays the value for the frame in the timing curve. Available when Timing is selected in the Animation Mode box. Editable.
For Alembic models or FBX models with cache animation, these Timing settings are available:
Timing field
Displays the scale of the geometry animation. Editable.
Offset field
Displays the offset applied to the animation curve. Editable.
UV Map Settings

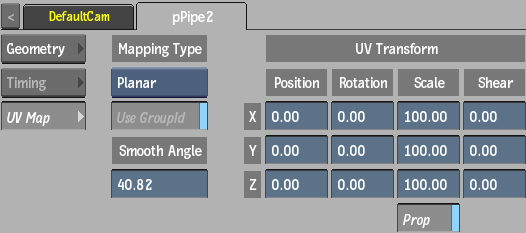

Use the UV Mapping settings to select how the UV coordinates of an attached displace, normal, or diffuse node are mapped to the 3D model. You can also apply axis transformations to the UV map. These transformations are different from the settings of the parent axis in that they transform the axes of the actual UV map coordinates.
UV Mapping Type box
Select the type of UV mapping to apply to the attached node.
When a Displace or Normal node is attached to a geometry, you may need a UV mapping type other than Default for the displace or normal pattern to have any effect on the geometry.
Use GroupId button
Enable to respect GroupId information in an FBX file created in 3ds Max.
Smooth Angle button
Enable to override existing normals in the geometry, then use the Smooth Angle field to change the value.
Smooth Angle field
Displays the angle at which the edges of normals become hard. Changes to this field only affect the shading of the displacement, and not the shape. Editable.
Position X field
Displays the position of the X axis. Editable.
Position Y field
Displays the position of the Y axis. Editable.
Position Z field
Displays the position of the Z axis. Editable.
Rotation X field
Displays the rotation of the X axis. Editable.
Rotation Y field
Displays the rotation of the Y axis. Editable.
Rotation Z field
Displays the rotation of the Z axis. Editable.
Scale X field
Displays the scale of the X axis. Editable.
Scale Y field
Displays the scale of the Y axis. Editable.
Scale Z field
Displays the scale of the Z axis. Editable.
Prop Scale button
Scales the X, Y, and Z UV axes proportionally.
Shear X field
Displays the shear of the X axis. Editable.
Shear Y field
Displays the shear of the Y axis. Editable.
Shear Z field
Displays the shear of the Z axis. Editable.
