Basic Behavior Setup (Moving Characters)
Few steps are required to create moving Characters.
CreaTE a Navmesh
First of all, you will need to create a Terrain Locator with a Navmesh. The Navmesh will allow Characters to navigate in the environment avoiding obstacles.
- Select the environment and open
the Navmesh Creator to
automatically generate a Terrain Locator with a related Navmesh.

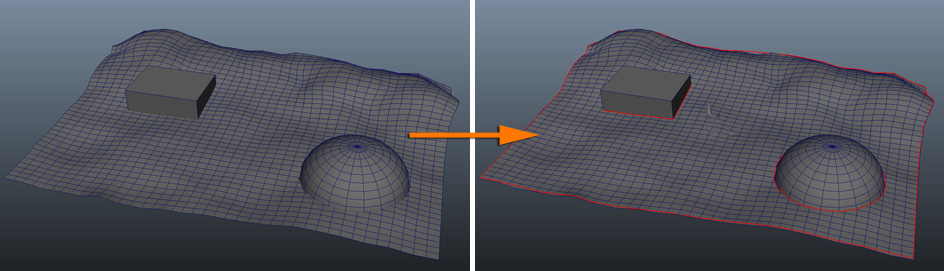

Navmesh and terrain locator creation
CreatE a moving Character
After setting up an EntityType (see Quick Start) and placing particles according to the Navmesh with the Population Tool, open the Behavior Editor and the previously created EntityType. Then add a Navigation Behavior, a Go To Behavior and a Locomotion Behavior with a set of animations in a Parallel Operator to create moving Characters.
- Drag-and-drop a Parallel
Operator
- Add a Navigation
Behavior
- Add a Go To
Behavior
- Add a Locomotion
Behavior
with a set of animations

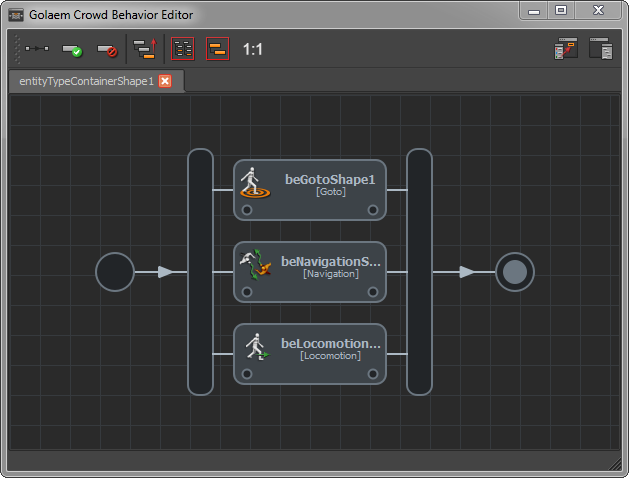

Go To Behavior and Navigation Behavior with a Locomotion
Viewport preview
To create more advanced actions you can combined several Go To Behaviors in a Behavior Container, in order to create a sequence of targets for example (see Dual Behaviors Handling, Running Behaviors one after another and Running Behaviors simultaneously)
