Interpolated Motion Blending

The** **Interpolated Blend Mode performs blending as classically used in animation, e.g. it consists in performing an interpolation between several animations:

Interpolated Animations Input/Configuration		Main Blend Pass Output Animation
A-Stance Interpolated Blend Mode	Waving T-Animation Interpolated Blend Mode	Average Waving Animation

All behaviors in Interpolated Blend Mode are blended during the Main Blend Pass (see details below)

Interpolated Mode: Priorities and Weights

Priorities and weights can be configured to handle animation concurrency and control accurately the interpolated blend. For instance, considering the following configuration for the 2 interpolated animations in the previous example:

Priorities/Weights Configuration	Main Blend Pass Output Animation
A-Stance priority is higher than Waving T-Animation priority	A-Stance

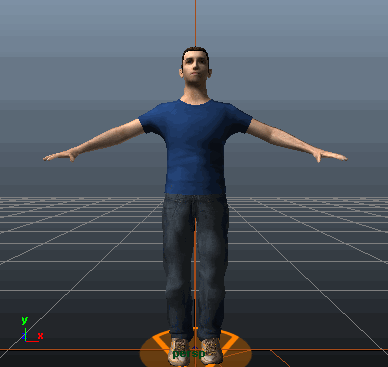

A-Stance priority is equal to Waving T-Animation priority A-Stance weight is 0.75 Waving T-Animation weight is 0.25	75% of A-Stance 25% of Waving T-Animation

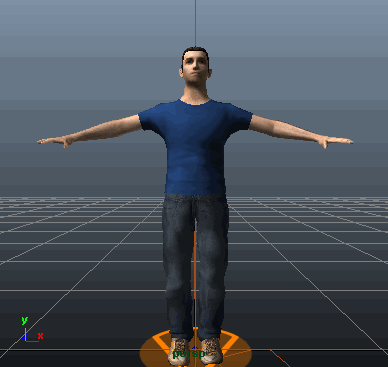

A-Stance priority is equal to Waving T-Animation priority A-Stance weight is equal to Waving T-Animation weight	50% of A-Stance 50% of Waving T-Animation

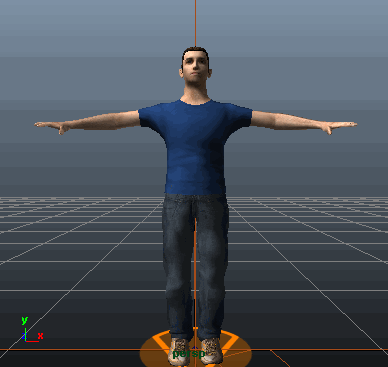

A-Stance priority is equal to Waving T-Animation priority A-Stance weight is 0.25 Waving T-Animation weight is 0.75	25% of A-Stance 75% of Waving T-Animation
A-Stance priority is lower than Waving T-Animation priority	Waving T-Animation
