To add culverts to a road

Use Add Culverts to add one or more culverts to a component road, wherever streams cross the road. Examine and modify a proposed culvert solution.

To add a culvert where a watershed analysis does not identify a watershed for a portion of a road, see To add a culvert manually.

1. Use watershed analysis to identify where streams cross a road.

   For more information, see To analyze watersheds from an outlet point or a road.

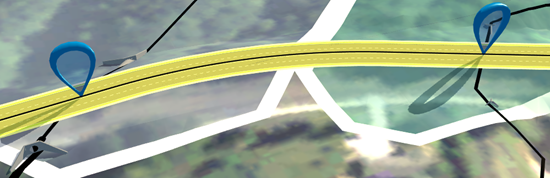

   Drainage Design displays a pin at each crossing location.



2. In Edit mode, right-click the selected road and choose DrainageAdd Culverts from the context menu.

   Drainage Design adds a culvert at each stream crossing as follows:

   • Places culverts at the intersection of the toe of the roadway slopes.
   • Utilizes watershed flow (Q100) and roadway elevation at the crossing.
   • Utilizes a maximum Headwater Depth to Diameter (HW/D) ratio of 1.5:1 to size the culvert barrel.

3. Examine and modify the culvert solution as needed.
