Output parameters of the simulation results are created on demand. The parameters are added to the model parameters. The output parameters are grouped in a folder bearing the simulation name.
If the results of the simulations are ready for evaluation, you can display a chart for the results of each parameter or parameter change.
- In the browser, right-click the Results browser node, and click Create Result Parameters.

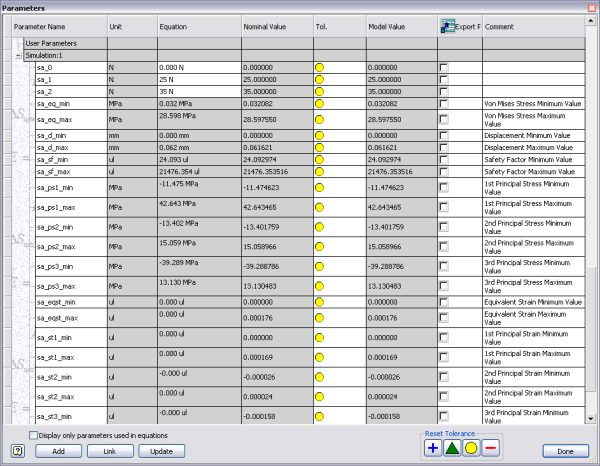

- If parameters are already created, on the Manage tab
Parameters panel, click Parameters. The Results Parameters are added to the list of other model parameters.

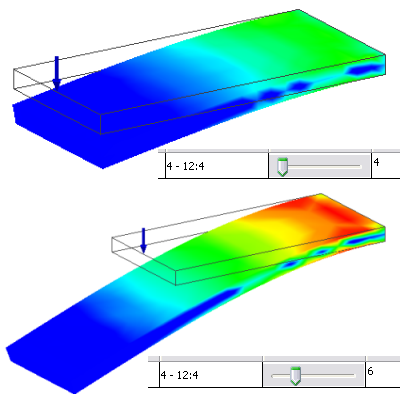

- To view the results for different parametric values, move the sliders on the Parametric Table.
- To optimize and filter results, in the Parametric Table, Design Constraints section, set the status of a constraint to a type of limit.
Specify the value and safety factor of the limit.
Then Specify the value and safety factor of the limit. change the status of another constraint to Minimize. The configuration updates and displays a result with the minimized values.
If there is an existing configuration that meets all the limits, it displays. Otherwise, the result violates a constraint.

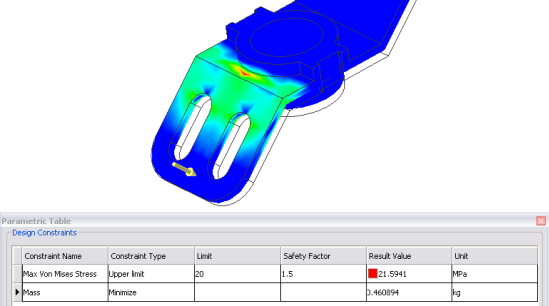

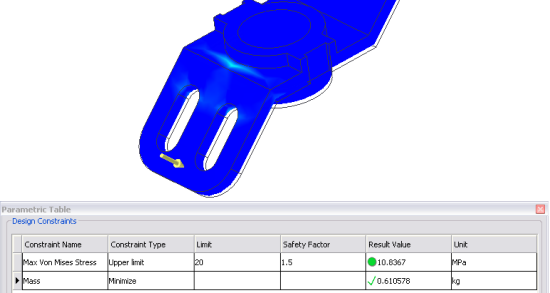

When an optimized solution displays, you can still move the sliders. The constraint values display a green check mark for the optimized constraint. For limit constraints with a safety factor, a colored shape displays to indicate if the constraint was exceeded. A green circle indicates the value lies within the acceptable range and a red square indicates the value lies outside of the acceptable range.
