Translators Enhancements (What's New in 2023.2)
Check out the latest enhancements to the translators.
The following support has been added or improved for:
Import
- Alias 2023
- CATIA V5-6R2022, .cgr R9 and newer
- NX 2206 Series
Export
- CATIA V5-6R2022
- JT - support for circular and rectangular datum target symbols
- QIF - support for circular and rectangular datum target symbols
For more information see Translators (3rd Party Files) and Supported File Versions.
Performance
Opening time for OBJ files is improved.
Import Workflow Improvements

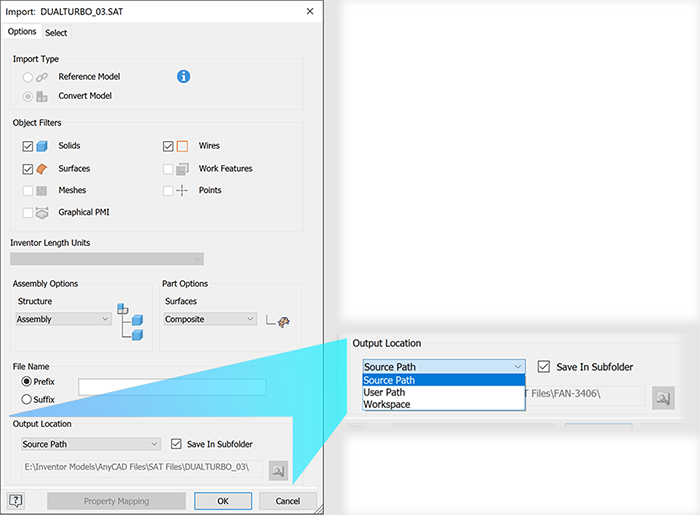

With this update you can specify the Output Location, where files are stored, for import tasks. Select the location using Source Path, User Path, or Workspace. The option to Save In Subfolder improves file management tasks. The path selection persists for use with subsequent import tasks, whether a single file or a batch process.
For more information see To Import Files as an AnyCAD Reference or Convert Model.
