Translators Enhancements (What's New in 2023.1)
Check out the latest enhancements to the translators.
The following support has been added for:
Import
- Alias 2022
- CATIA V5
- .catpart, .catproduct R6 to V5-6R2021
- .cgr R10 and newer
- Creo Parametric 9.0
- NX 2007 Series
- Pro/E Granite 15.0
Export
- .glb/.gltf v2/0
- Pro/E Granite 15.0
- USDz 1.0
AnyCAD
- Alias 2022
- CATIA V5
- .catpart, .catproduct R6 to V5-6R2021
- .cgr R10 and newer
- PTC Creo 9.0
- NX 2007 Series
Import Options

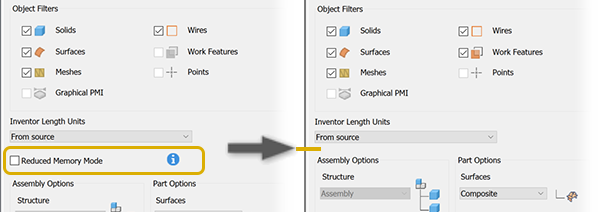

Reduced memory mode is removed from the Import dialog.
For OBJ and STL import, the option to Save Components during Load is removed.
Product Manufacturing Information (PMI)
PMI, in part documents, can be included when exporting assemblies in JT and STEP formats by selecting the option.

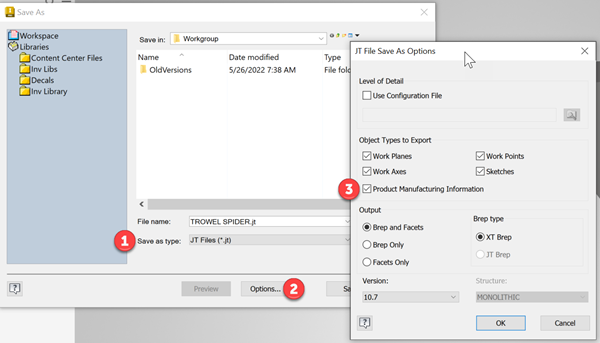

JT format.

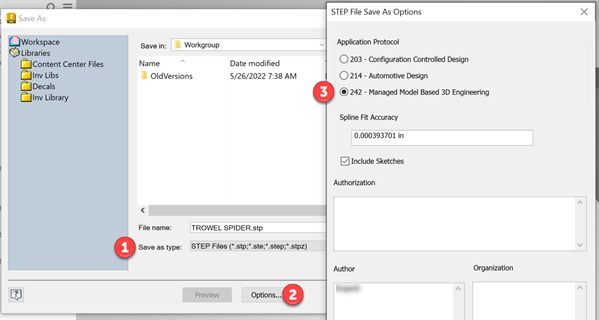

STEP AP 242 format.
