Edge Symbol (What's New in 2024)
Learn about the newly added Edge Symbol feature.

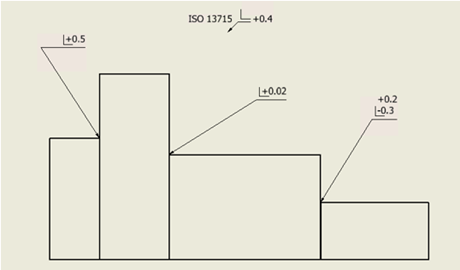

Starting from this release of Inventor, you can define an Edge Symbol based on ISO 13715:2019 standard. The new Edge Symbol command is added to the Symbols panel of the Annotate tab.

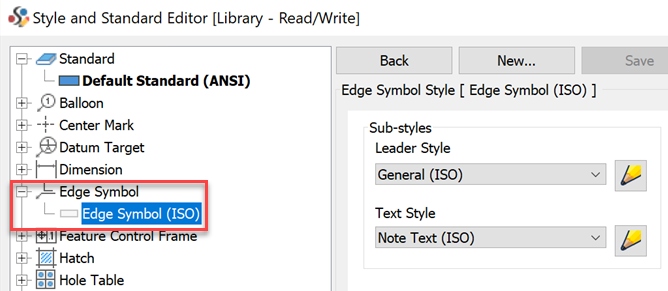

The Edge symbol style is added to the drawing Style and Standard Editor.
For more information see Add an edge symbol.
