Transition Symbol (What's New in 2025)
Learn about the newly added Transition Symbol feature.
Starting from this release of Inventor, you can define the Transition Symbol based on the ISO 21204:2020 standard. The new Transition Symbol command has been added to the Symbols panel of the Annotate tab.
There are three types of transition symbols based on their placement.
Edge: This type of transition symbol is created by selecting certain geometry from the view or sketch during the creation process. It can also be reattached.

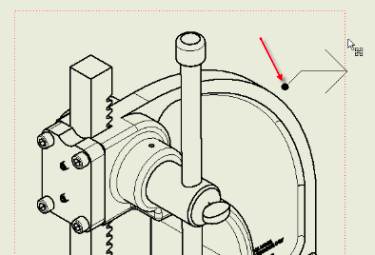

Face: Created when it is generated in an empty space within the view bounding box.

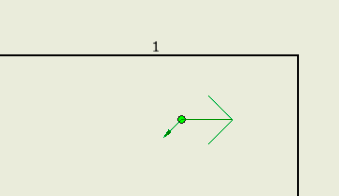

Sheet: Created when it is generated in the empty space of a sheet.
Use the Style and Standard Editor to adjust the style of the transition symbol.
For more information, see Add a transition symbol and Style and Standard Editor - Transition Symbol Style Reference.
