Sharing Inventor and Fusion files.
Note: Fusion web client stores the data accessed by Fusion. Files can be opened from a Fusion web client that you own, or a Fusion web client you have been invited to participate in as a project member. If you are not a subscriber, you can access the following functionality if you have been invited to participate in a Fusion web client project as a project member.
- A Fusion web client account is required to share Inventor part files with Fusion. You are asked to choose a web client and project when you send a file to Fusion.
- The Fusion web client project location is where the Inventor part files are stored. After you upload a file, you can view the file in Fusion web client or open in Fusion if it is installed.
- Fusion web client requires internet access.
Send Inventor Parts and Assemblies to Fusion

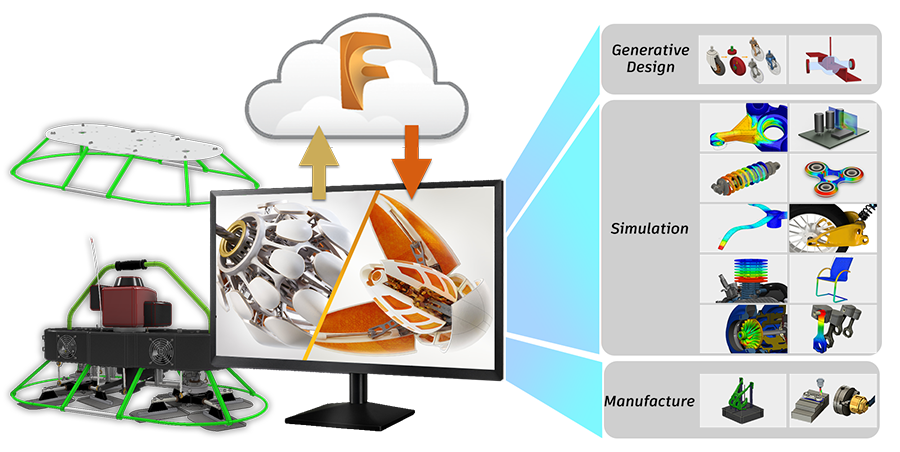

These Fusion commands expedite the process of getting data to Fusion for use in various studies, simulations or work setups. Desktop Connector is not used for this workflow.
When you activate a Fusion command in the Fusion tab, the Fusion Interoperability displays an introduction page. The page explains the purpose and requirements of the selected command and, when available, links to examples.
Note: The Fusion commands are disabled during edit in-place.
Clicking Continue brings you to the data panel where you specify parts, and the Fusion web client and location for the data. When ready, click Upload and the Inventor data is pushed to Fusion web client. In Fusion web client you see an IPT file. The F3D file is generated when the IPT is opened in Fusion.
For the uploaded data, you can:
- View the data in a web browser
- Open the data in Fusion, in the appropriate workspace and ready to define the study or process
AnyCAD Workflow

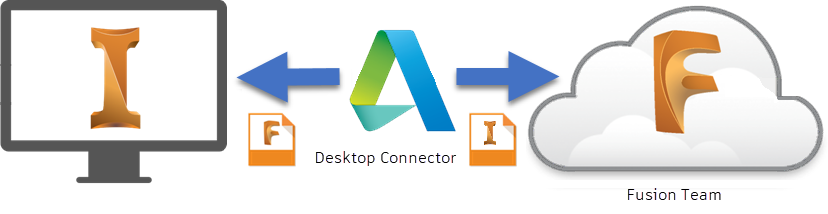

Use an AnyCAD workflow to open Fusion files in Inventor, or Inventor parts and assemblies in Fusion.
The following is required to use an AnyCAD workflow to open Fusion files in Inventor or Inventor parts and assemblies in Fusion:
- A Fusion web client account. Fusion web client is where Fusion (.fusiondesign) or Inventor files are stored so they can be shared.
Note: Files can be opened from a Fusion web client that you own or a Fusion web client you have been invited to participate in as a project member.
- Desktop Connector must be installed locally on your computer. Desktop Connector creates a local Fusion drive on your computer that provides access to .fusiondesign. iam, and .ipt files in your Fusion web client project.
- Subscription to one of the following products: Fusion, Product Design and Manufacturing Collection, or Product Design Suite.
For more information, see: To Import Fusion Files as an AnyCAD Reference Model.
