Drawing Enhancements (What's New in 2023.2)
Here are the drawing enhancements for this release.delete
Base View

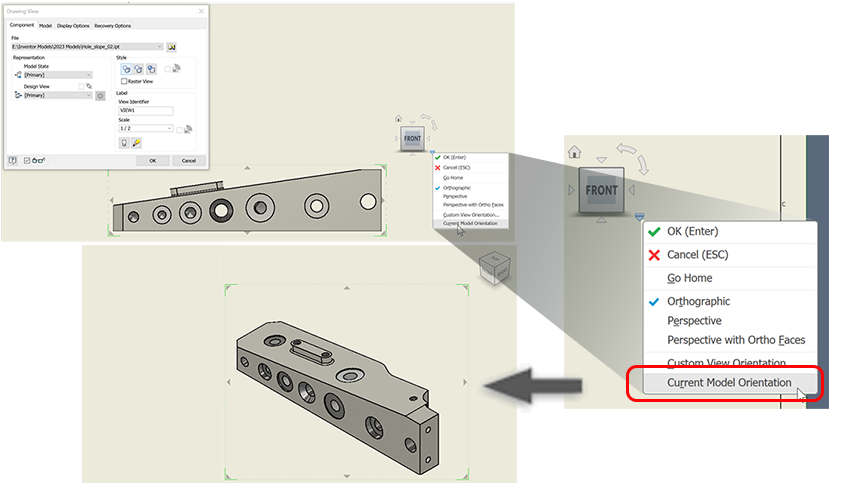

You can now place a base view with the current model view orientation. Click the ViewCube dropdown and select Current View Orientation.
For more information see To Create a Base View and Projected Views.
Detail Views

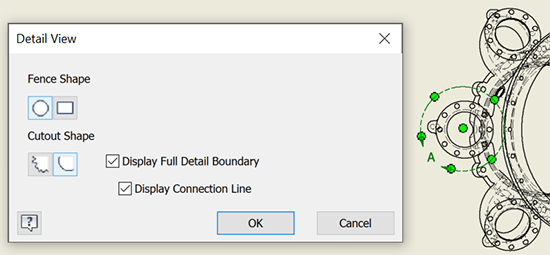

The most recent Detail View settings are used to populate the dialog for the next use.
Retained settings include:
- Fence shape
- Display full detail boundary, disabled for jagged boundary
- Display connection line, disabled for jagged boundary
For more information about Detail views see About Detail Views.
For information working with Detail views see To Create and Edit Detail Views.
Break Out View Workflow
When creating Break Out Views, if the break out profile is an open loop an error message displays. The new workflow places you in edit sketch mode so you can close the loop, finish the sketch, and complete creating the view. If the view has multiple open loop sketches, the command terminates with an error message and you can then edit the appropriate sketch.
For more information see To Create Breakout.
Annotations: Ordinate Sets, Baseline Sets, and Chain Sets

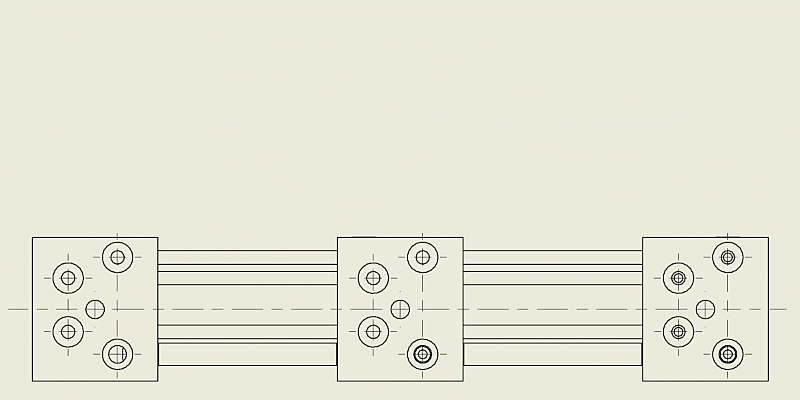

The dimension Sets (Ordinate, Baseline, Chain) workflow is improved, click Continue to place the set, then continue selecting members or use Esc to end the command. Use ESC to end selection when adding set members. Each member added is recorded in the Undo list.
Drawing Resources

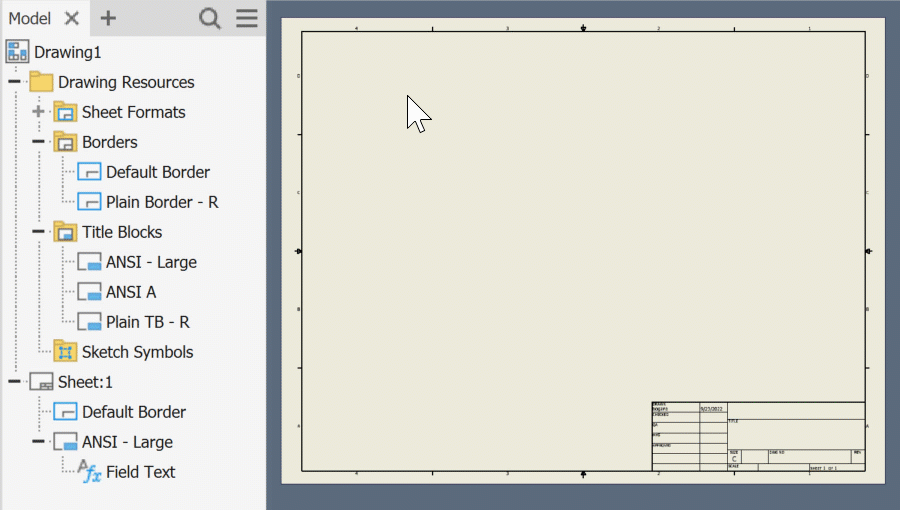

Easily replace the current title block or border using Insert in the replacement title block or border context menu.
For more information see To Work with Title Blocks and To Work with Drawing Borders.

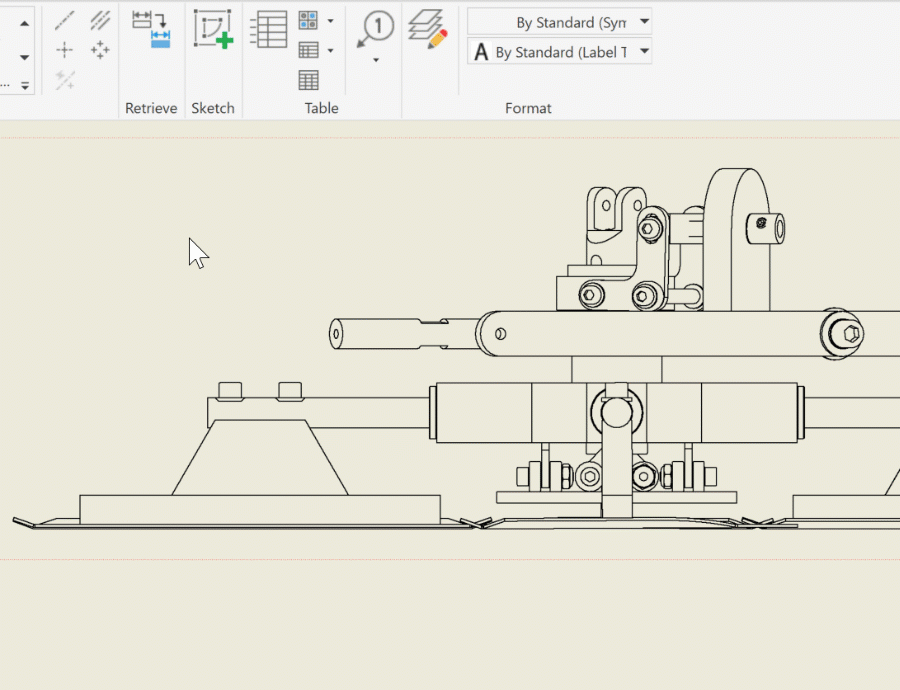

3D Model Annotations in Drawing Views
The 3D model annotations applied to parts can be retrieved in assembly drawing views.
For more information see Retrieve model annotations in a drawing.
Parts List Editing and Navigation

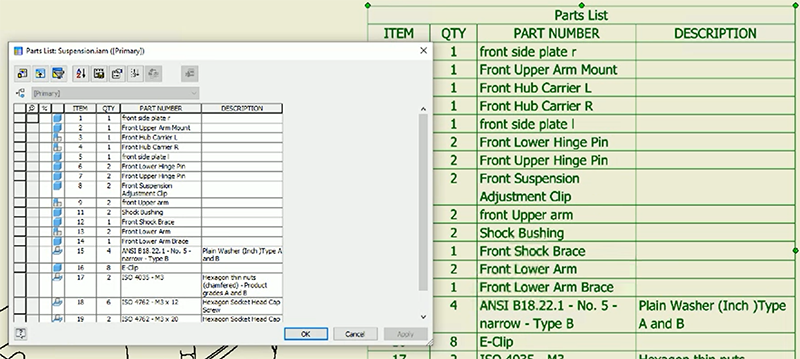

The Parts List dialog is now a modeless dialog. That means, you can pan and zoom in the drawing while working in the dialog. If you use pan or zoom, use ESC to exit either without closing the dialog.
For more information see About Parts Lists.
